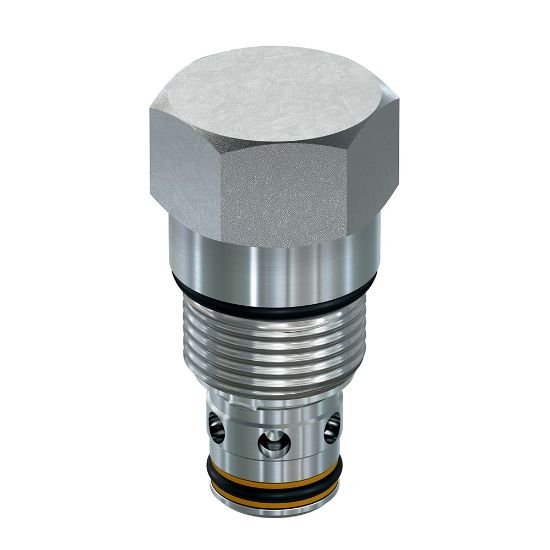

Check Valve with Thermal Relief - D04F2-2.5-245V

Name: Check Valve with Thermal Relief - D04F2-2.5-245V
SKU: D04F2-2.5-245V

Parker’s poppet style check valve with thermal relief allow flows up to 130 lpm (40 gpm) and pressure to 420 bar (6,000 psi), with thermal relieving in the reverse direction to protect the circuit from high hydraulic fluid thermal expansion pressures.

Availability:

Backordered

SKU D04F2-2.5-245V

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Cracking Pressure	36 PSI, 2.5 BAR
Flow Rate	40 GAL/MIN, 130 L/MIN	Pressure Relief Setting	3553 PSI, 245 BAR
Connection Size	n/a	Connection Type	n/a
Weight	0.29	Maximum Operating Temperature	400
Seal Material	Fluorocarbon	Body Material	n/a
For Fluid Type	Mineral-based Hydraulic Fluids	Operating Temperature	-15 to 400
Flow Direction	Bi-directional	Valve Material	Steel (all parts)
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15	Maximum Operating Pressure	6000
Maximum Flow Rate	40	Flow Rate	40
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Division	Mobile Hydraulic Systems Division Europe	Maximum Inlet Pressure Rating	6000
Cavity Size	C10-2	Installation Torque	37
Function	Thermal Relief	Leak Rate	3 drops/min @ Crack Pressure
Cracking Pressure	36	Configuration	Poppet Type
Operation Type	Check Valve W/Relief Feature	Pressure Relief Setting	3553
