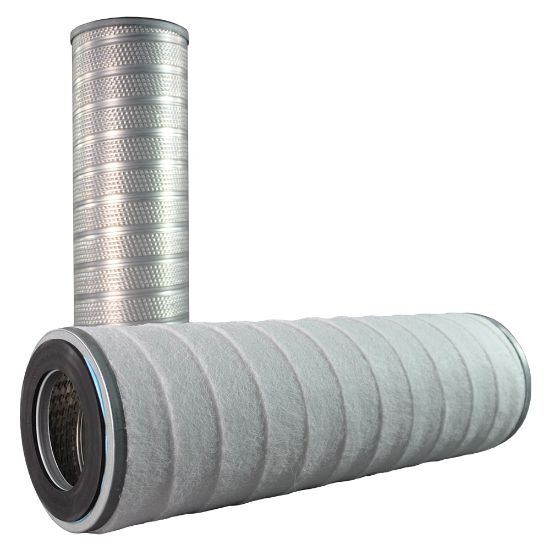

Picture of CHEMELEAN® CM Liquid Filter Cartridge - 24989

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

CHEMELEAN® CM Liquid Filter Cartridge - 24989

Chemelean® CM filter cartridges remove contaminants from a wide range of liquid applications. They are 6"OD with open-end sealing and 20" or 40" lengths. The cartridge range offers pleated medias as well as a PEACH® depth option.
Availability:
Backordered
SKU 24989
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
pH Range3-9Core MaterialTin-Plated Steel
Cartridge Length20"End Cap MaterialTin-Plated Steel
Maximum Operating Temperature240 FMicron Rating1
Seal MaterialVitonFilter MaterialGlass with Acrylic
Body MaterialTin-Plated SteelFilter ConstructionPleated
Product SeriesCM-GModel NumberELMT CM-G1-2010V
DivisionIndustrial Process Filtration DivisionBrandPECO
DivisionIndustrial Process Filtration DivisionIndustryOil & Gas
TechnologyFiltrationApplicationLiquid Particulate Filtration
Product TypeFilter CartridgeFlow DirectionOutside-to-inside
Changeout Pressure Differential35 psidMaximum Pressure Differential50 psid
Quantity per Box1End Cap ConfigurationDOE - Double Open End
Nominal Inside Diameter3.5 inchNominal Outside Diameter6 inch
