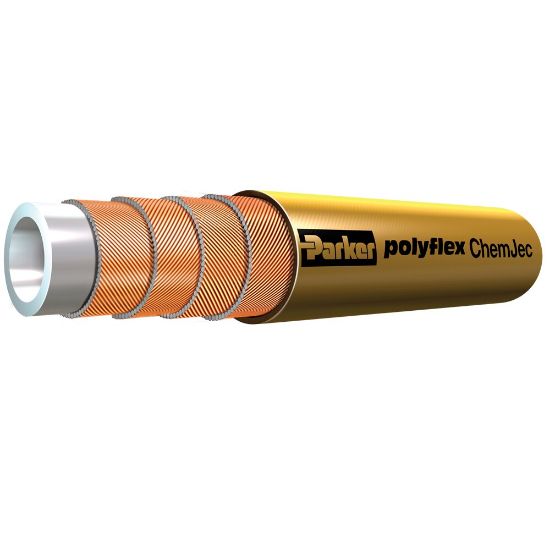

Picture of ChemJec Hydraulic Umbilical Hose - 2440M/2448M/2640M - 2440M-04V38

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

ChemJec Hydraulic Umbilical Hose - 2440M/2448M/2640M - 2440M-04V38

Chemjec hydraulic umbilical hoses feature excellent chemical resistance and are rated for pressures up to 15,000 psi.
Availability:
Backordered
SKU 2440M-04V38
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (size)-4Maximum Working Pressure (psi)12,500
DivisionParflex DivisionMinimum Operating Temperature-40
Size-4Design Factor4:1
Maximum Operating Temperature212ApplicationSubsea BOP
Minimum Bend Radius6Inside Diameter1/4
MediaPetroleum Hydraulic FluidsCompatible Fitting8X Series
Specifications MetISO 13628-5Maximum Operating Pressure12500
Weight0.21Outside Diameter0.520
Hose Inner Tube MaterialProprietary MaterialHose Reinforcement Material4 Closed Spiral Layers of High Tensile Steel Wire
