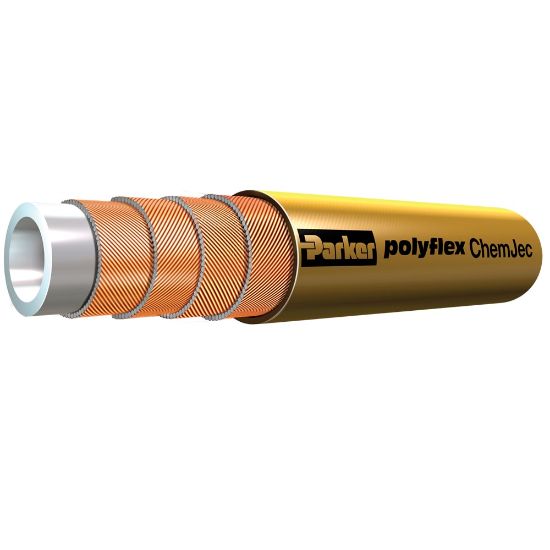

Picture of ChemJec Hydraulic Umbilical Hose - 2440M/2448M/2640M - 2448M-04V38

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

ChemJec Hydraulic Umbilical Hose - 2440M/2448M/2640M - 2448M-04V38

Chemjec hydraulic umbilical hoses feature excellent chemical resistance and are rated for pressures up to 15,000 psi.
Availability:
Backordered
SKU 2448M-04V38
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (size)-4Maximum Working Pressure (psi)15,000
DivisionParflex DivisionMinimum Operating Temperature-40 °C
Maximum Operating Pressure15000 psiSize-4
Design Factor4:1Maximum Operating Temperature212 °F
ApplicationSubsea BOPInside Diameter6.4 mm
Minimum Bend Radius9 inchMediaPetroleum Hydraulic Fluids
Specifications MetISO 13628-5Weight0.38 kg/m
Outside Diameter0.540 inchCompatible FittingUX Series
Hose Inner Tube MaterialProprietary MaterialHose Reinforcement Material4 Closed Spiral Layers of High Tensile Steel Wire
