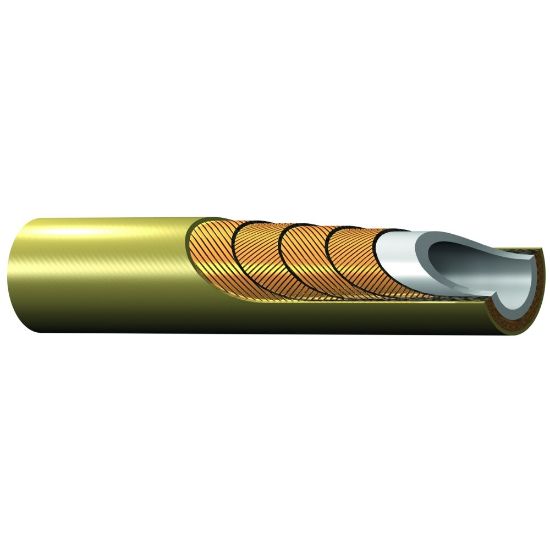

Picture of ChemJec Hydraulic Umbilical Hose - 2440M/2448M/2640M - 2448M-05V38

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

ChemJec Hydraulic Umbilical Hose - 2440M/2448M/2640M - 2448M-05V38

Chemjec hydraulic umbilical hoses feature excellent chemical resistance and are rated for pressures up to 15,000 psi.
Availability:
Backordered
SKU 2448M-05V38
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (size)-5Maximum Working Pressure (psi)15,000
DivisionParflex DivisionMinimum Operating Temperature-40
Maximum Operating Pressure15000Design Factor4:1
Maximum Operating Temperature212ApplicationSubsea BOP
Inside Diameter5/16MediaPetroleum Hydraulic Fluids
Specifications MetISO 13628-5Size-5
Compatible FittingLX SeriesWeight0.35
Outside Diameter16.3Minimum Bend Radius9
Hose Inner Tube MaterialProprietary MaterialHose Reinforcement Material4 Closed Spiral Layers of High Tensile Steel Wire
