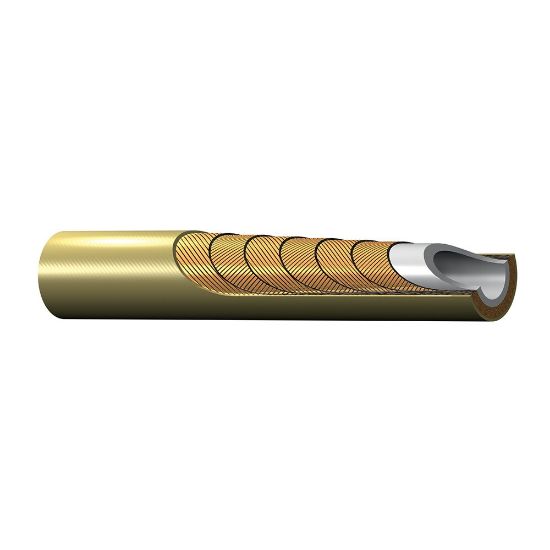

Picture of ChemJec Hydraulic Umbilical Hose - 2440M/2448M/2640M - 2640M-08V38

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

ChemJec Hydraulic Umbilical Hose - 2440M/2448M/2640M - 2640M-08V38

Chemjec hydraulic umbilical hoses feature excellent chemical resistance and are rated for pressures up to 15,000 psi.
Availability:
Backordered
SKU 2640M-08V38
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (size)-8Maximum Working Pressure (psi)15,000
DivisionParflex DivisionMinimum Operating Temperature-40 °C
Design Factor4:1Maximum Operating Temperature100 °C
Size-8ApplicationSubsea BOP
Inside Diameter12.7 mmMediaPetroleum Hydraulic Fluids
Outside Diameter0.970 inchSpecifications MetISO 13628-5
Minimum Bend Radius290 mmMaximum Operating Pressure103.5 MPa
Compatible Fitting5X SeriesHose Inner Tube MaterialProprietary Material
Weight0.90 lb/ftHose Reinforcement Material6 Closed Spiral Layers of High Tensile Steel Wire
