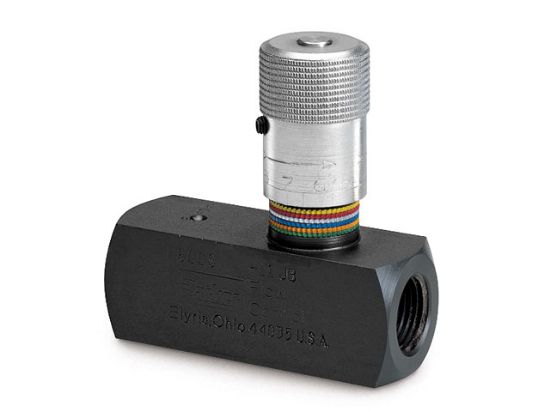

Colorflow Flow Control Valve - NPT - F200B4F

Name: Colorflow Flow Control Valve - NPT - F200B4F
SKU: F200B4F

Parker Colorflow Flow Control Valve - NPT Ports

Availability:

Backordered

SKU F200B4F

POR

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Brass
Pkg Qty/UOM	1 EA	Pkg Qty	1
Thread 1	1/8 NPT	Material Poppet/Stem Seals	Nitrile
Max Flow	3 GPM (11 LPM)	Free Flow CV Factor	0.53
Free Flow Orifice Area (in2)	0.023	Effective Orifice Area - Control Flow (in2)	0.0102
Effective Control Flow CV Factor	0.23	Material	Brass
Thread 1	1/8 NPT	Thread 1 Type	NPT
Parker Group	Hydraulic	Parker Division	Hydraulic Valve
Configuration Type	Female to Female	Trade Name	Colorflow
Max Pressure	140 Bar (2000 PSI)	Poppet Type	Soft
Operating Temperature	-40°F to +250°F	Material Poppet/Stem Seals	Nitrile
Max Flow	3 GPM (11 LPM)	Valve Type	Flow Control Valve
Free Flow CV Factor	0.53	Series	F
Free Flow Orifice Area (in2)	0.023	Effective Orifice Area - Control Flow (in2)	0.0102
Effective Control Flow CV Factor	0.23	Needle Option	Fine

Product resources

Colorflow Flow Control Valves (PDF)
