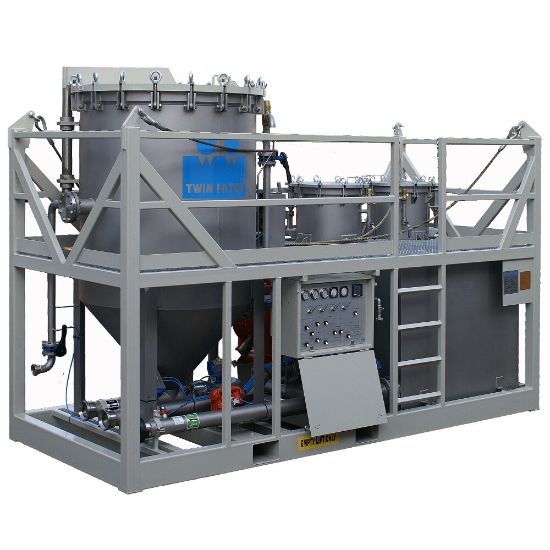

Picture of Combination Filter Unit Vertical Pressure Leaf and Dual Vessel Filter Unit - VPL420-C

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Combination Filter Unit Vertical Pressure Leaf and Dual Vessel Filter Unit - VPL420-C

This vertical pressure leaf combination unit has an integrated dual vessel filter unit to save floor space. Furthermore no separate hook-up of the dual vessel filter unit is required.
Availability:
Backordered
SKU VPL420-C
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Filter Area ft2/m2420 ft2 / 39 m2DivisionIndustrial Process Filtration Division
BrandTwin FilterProduct TypeFiltration
Industry ApplicationService CompanyMaximum Operating Temperature158.0
Width6.6Maximum Flow Rate12 Bbl/min
Maximum Operating Pressure101.5Length13
Connection Size7 inch Union Fig. 100Valve Type'4" BFV air operated from control board.
Height9.6Weight9920 lb (Empty)
Vessel SizeVPL 43.3 inch (100 mm)<br/>Wetted MaterialVessel : SS 316L<br/>Filter Leaves: SS 316L with polypropylene filter cloth<br/>
Operating FeaturesCentral pneumatic control panel; all main valves are operated by pneumatic actuators.<br/>In/Outlet pressure gauge.<br/>Pressure relief valve.<br/>Flow indicator.<br/>Air operated diaphragm pump for precoating and bodyfeed.Materials of ConstructionFrame: Carbon Steel (Powder Coated RAL 5015 others on request)
