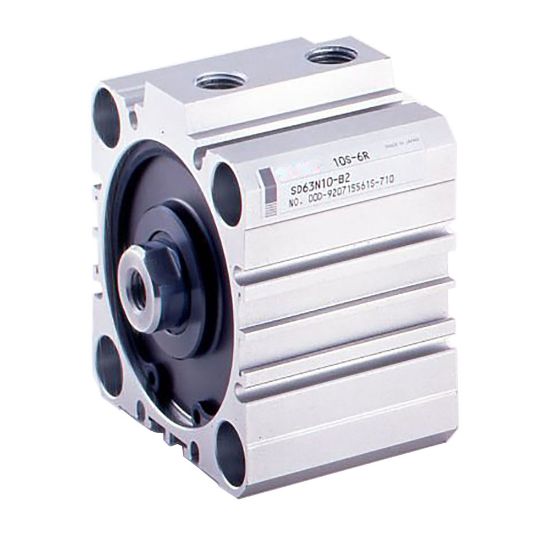

Picture of Compact Design Pneumatic Cylinder Model:10S-6 - 10S-6SR

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compact Design Pneumatic Cylinder Model:10S-6 - 10S-6SR

The 10S-6 series is available in 11 bore size at JIS B 8368-4. The cylinder is supplied in a choice of magnetic or non-magnetic function. This product offers very short axial dimensions.
Availability:
Backordered
SKU 10S-6SR
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Screw ToleranceJIS 6g/6HFluid TypeAir
LubricationUnnecessary(But possible)Proof Pressure (MPa)1.5
Body MaterialAluminum alloyRod End Thread TypeFemale thread and male thread
Stroke Length Tolerance (mm)0-+1.0TypeSpring Return, Standard type
Speed Range100-500mm/s(φ12-40), 100-300mm/s(φ50)Related PartsCB bracket(φ30-50)
Mounting StyleSD,ST,LA,LB,FA,FB,CA,CBRod End StylesRod eye(T-end),Rod eye(S-end) with spherical bearing, Rod clevis(Y-end)with pin, Floating joint.
Cushioning TypeNone(φ12-16), With cushion pads(Urethane rubber)(φ20-50)Bore Diameter (mm)12, 16, 20, 25, 32, 40, 50
Pressure Range (MPa)0.2-1(φ12-16), 0.18-1(φ20-25), 0.12-1(φ32-50)Temperature Range (C)-10-+60 (No freezing)
Allowable Rotational Torque (N・m)naRotaton Angle Tolerance (degrees)na
DivisionTAIYO Division
