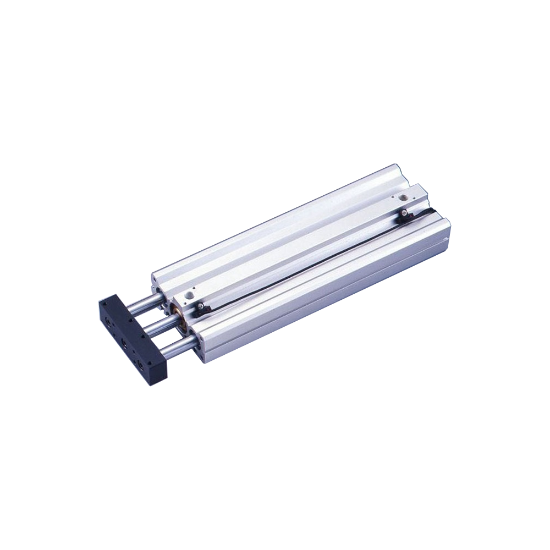

Compact Design Pneumatic Cylinder with Guide Model:10G-2 - 10G-2-SKU

Compact pneumatic cylinder with guide 10G-2 series that pursues high accuracy, high rigidity, and ease of use. You can select from 2 model types according to the intended use. Non-rotation accuracy has been improved by integrating the guide.
Availability:
Backordered
SKU 10G-2-SKU
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Fluid TypeAirLubricationUnnecessary(But possible)
Pressure Range (MPa)0.1-1.0Body MaterialAluminum alloy
Speed Range50-500mm/sCushioning TypeWith cushion pads on both ends(Nitrile rubber)
Bore Diameter (mm)20, 32, 40, 50, 63, 80Temperature Range (C)0-+60(No freezing)
BearingSlide bearing Lift type(Stopper), Slide bearing,Linear bush bearing(Pusher type)DivisionTAIYO Division
