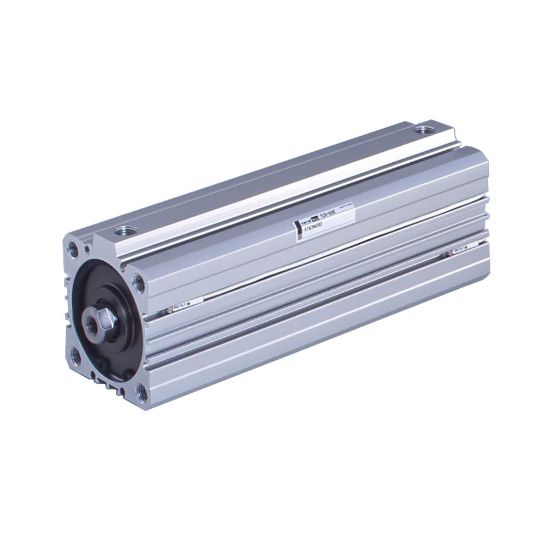

Picture of Compact Design Pneumatic Cylinder(for Long Strokes) Model:10S-6RE - 10S-6RE-SKU

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compact Design Pneumatic Cylinder(for Long Strokes) Model:10S-6RE - 10S-6RE-SKU

It is a compact pneumatic cylinder 10S-6RE series with a compact design that supports long strokes. Made-to-order specifications, it also supports rotation-less. Standard stroke is up to 300mm.
Availability:
Backordered
SKU 10S-6RE-SKU
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Rod End StylesRod eye(T-end),Rod clevis(Y-end)with pinScrew ToleranceJIS 6g/6H
Fluid TypeAirLubricationUnnecessary(But possible)
Proof Pressure (MPa)1.5Body MaterialAluminum alloy
Rod End Thread TypeFemale thread and male threadBore Diameter (mm)32, 40, 50, 63, 80, 100
Speed Range30-500mm/s(φ32-40), 30-300mm/s(φ50-100)Related PartsCB bracket,TA bracket,TB bracket
Mounting StyleSD(Through holes),ST(tapped on both sides),LA,LB,FA,FB,CA,CBCushioning TypeCushion pads on both ends
Pressure Range (MPa)0.1-1(φ32), 0.05-1(φ40-100)Temperature Range (C)-10-+70 (No freezing)
Stroke Length Tolerance (mm)Stroke of 100 or less:0-+1.0mm Stroke of 101 or more:0-+1.5mmDivisionTAIYO Division
