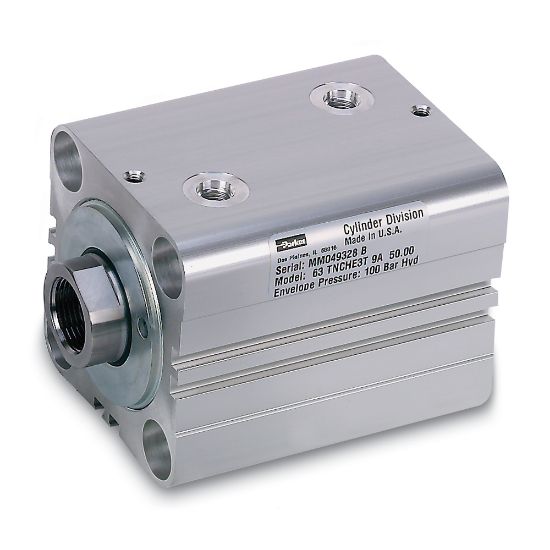

Picture of Compact Hydraulic Cylinders, Metric - Aluminum Body Construction - Series CHE (Americas) - SERIES CHE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compact Hydraulic Cylinders, Metric - Aluminum Body Construction - Series CHE (Americas) - SERIES CHE

Series CHE Metric Compact Hydraulic Cylinders – best choice when end-of-stroke, mid-stroke or continuous stroke position sensing is required; limited mounting space and operating pressures up to 140 bar (bore size dependent).
Availability:
Backordered
SKU SERIES CHE
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Materials of ConstructionAluminum Alloy, Corrosion ResistantSpecifications MetISO 16656: 2004
Product TypeCylinder ActuatorTechnologyHydraulics
Operating Temperature-23 to 100 °C (depending on seal class)DivisionCylinder Division
Rod Diameter12 to 56ConfigurationCompact Hydraulic
Stroke Lengthup to 165 mm depending on bore size.Mounting Type6 Standard Styles
Product SeriesSeries CHE Compact Hydraulic Cylinders - Aluminum Body ConstructionOperating Pressureup to 140 bar (depending on bore size)
For Fluid TypeHydraulic OilBore Diameter20 to 100
