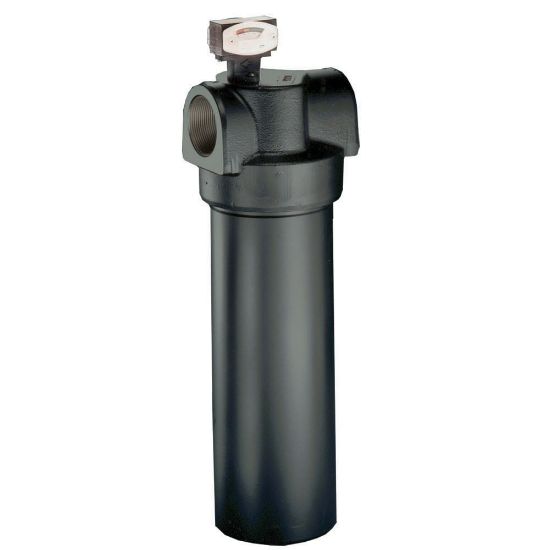

Picture of Compressed Air and Gas - Up to 800 PSIG - M-Series - MN8S-4QUG

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compressed Air and Gas - Up to 800 PSIG - M-Series - MN8S-4QUG

Parker’s Finite filters make it possible to improve process efficiency and provide optimal process protection.
Availability:
Backordered
SKU MN8S-4QUG
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
LengthStandardElement Seal MaterialUrethane
Port Connection (inch)2Filter TypeCoalescing with Pre Filter
Thread TypeNPTPre-Installed Optional AccessoriesDifferential Pressure Gauge
Maximum Flow Rate (cfm)1849 at 800 psigMicron Rating (µm)0.01
Filter Rating (%)99.995Weight10.37 lb
Maximum Flow Rate3141 m3/hour at 55 bargHeight472 mm
BrandFiniteDivisionIndustrial Gas Filtration and Generation Division
Element Removal Clearance13.5 inchWidth5.91 inch
Maximum Operating Temperature79 °CCompatible Element4QU25-130
