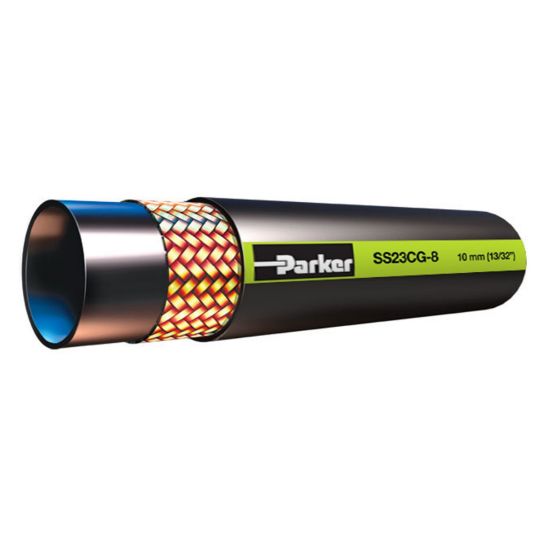

Picture of Compressed Natural Gas and Liquefied Petroleum Gas Hose 350 PSI - SS23CG Hose - SS23CG-10

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compressed Natural Gas and Liquefied Petroleum Gas Hose 350 PSI - SS23CG Hose - SS23CG-10

Parker's SS23CG hose is a compressed natural gas and liquefied petroleum gas hose that has a constant working pressure of 350 PSI to deliver consistency and reliability.
Availability:
Backordered
SKU SS23CG-10
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (size)-10Maximum Operating Pressure3 MPa
Hose Inner Tube MaterialPolyamide (PA)Weight0.42 kg/m
Hose Reinforcement Material1 Braid of Steel WireMinimum Bend Radius5-1/2 inch
Hose Cover TypeStandard CoverCompatible Fitting26 Series
Cover MaterialSynthetic RubberApplicationLiquefied Petroleum Gas (LPG)
Maximum Operating Temperature121 °COutside Diameter23.4 mm
DivisionHose Products DivisionNominal Hose Inside Diameter12 mm
MediaWelding Gases (Technical Gases)Minimum Operating Temperature-40 °C
Specifications MetECE R110, Class 1 (Standard 21 LPG)Inside Diameter12.5 mm
