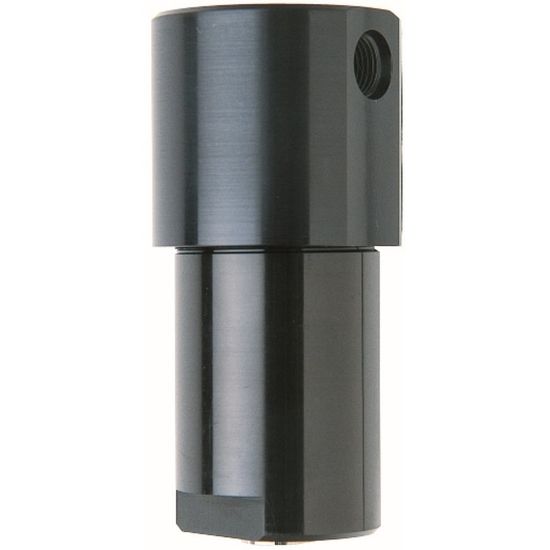

Picture of Compressed Natural Gas (CNG) Assemblies – Racor FFC Series - FFC-112-06

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compressed Natural Gas (CNG) Assemblies – Racor FFC Series - FFC-112-06

Racor FFC CNG Filter / Service Elements protect alternative fuel system injectors and components by removing aerosol contaminants in CNG as small as 0.3 – 0.6 micron with up to 99.97% efficiency.
Availability:
Backordered
SKU FFC-112-06
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
MediaCoalescer grade 06MaterialAnodized Aluminum
Port Connection1/4" NPT x2Flow Capacity (CFM)315 @ 3600 psig
Flow Capacity (m3/h)535 @ 24821 kPaMaximum Working Pressure (Bar)248
Maximum Working Pressure (psi)3600DivisionEngine Mobile Original Equipment Division
BrandRacorHeight4.8
Weight1.5ApplicationOnboard CNG powered vehicles
For Fluid TypeCNGProduct SeriesCartridge CNG Fuel Filter
Seal MaterialFlurocarbonMaximum Operating Temperature-40 to 221
DrainPlugDiameter2.3
Mounting Type(Top) 5/16”-18 UNFCompatible ElementCLS112-06
Operating Features0.5 oz. sump capacity
