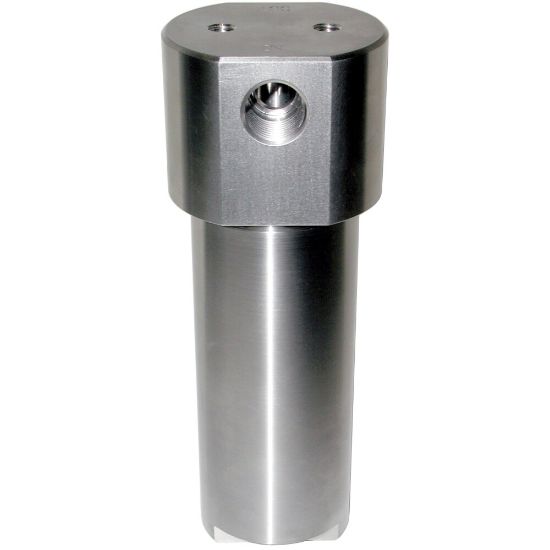

Picture of Compressed Natural Gas (CNG) Assemblies – Racor FFC Series - FFC-113-SAE-06

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compressed Natural Gas (CNG) Assemblies – Racor FFC Series - FFC-113-SAE-06

Racor FFC CNG Filter / Service Elements protect alternative fuel system injectors and components by removing aerosol contaminants in CNG as small as 0.3 – 0.6 micron with up to 99.97% efficiency.
Availability:
Backordered
SKU FFC-113-SAE-06
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Material303 Stainless SteelMaximum Working Pressure (Bar)248
Flow Capacity (m3/h)1339 @ 24821 kPaPort Connection3/4" SAE x2
Maximum Working Pressure (psi)3600Flow Capacity (CFM)788 @ 3600 psig
MediaCoalescer grade 06Compatible ElementCLS47113-01
DrainPlugBrandRacor
For Fluid TypeCNGWeight5.5
Height8Maximum Operating Temperature-40 to 221
Mounting Type(Top) 3/8”-16 UNC-2B X2ApplicationOnboard CNG powered vehicles
DivisionEngine Mobile Original Equipment DivisionProduct SeriesCartridge CNG Fuel Filter
Operating Features0.5 oz. sump capacitySeal MaterialFlurocarbon
Diameter3
