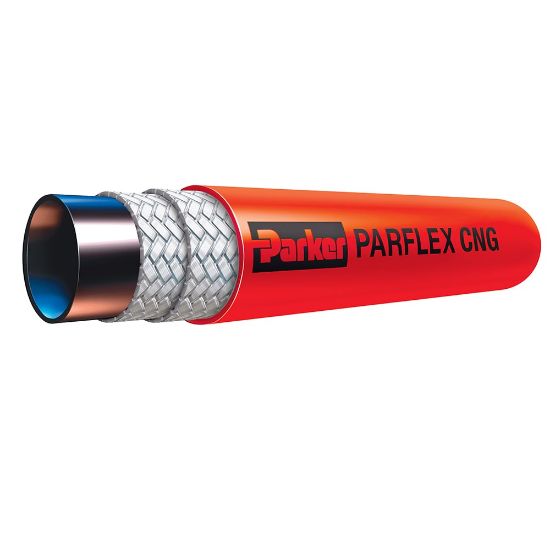

Picture of Compressed Natural Gas Hose - Electrically Conductive - 5CNG - 5CNG-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compressed Natural Gas Hose - Electrically Conductive - 5CNG - 5CNG-4

Parflex's global presence in the CNG market for natural gas vehicles and fueling stations allow OEM revenue growth by selling into multiple geographies given the CSA (NA) and ECR (EMEA) approvals on CNG Hose.
Availability:
Backordered
SKU 5CNG-4
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1/4DivisionParflex Division
Outside Diameter14 mmCover MaterialPolyurethane
Maximum Operating Temperature185 °FApplicationNatural Gas Transfer
Minimum Bend Radius51 mmInside Diameter1/4 inch
Compatible FittingCG SeriesMediaNatural Gas
Hose Inner Tube MaterialConductiveMaximum Operating Pressure345 bar
Minimum Operating Temperature-40 °FSpecifications MetANSI NGV 4.2, CSA 12.52, Class A, Class D
Weight0.08 lb/ftDesign Factor4:1
Hose Reinforcement MaterialAramid Fiber
California Residents: Prop-65 Warning
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
