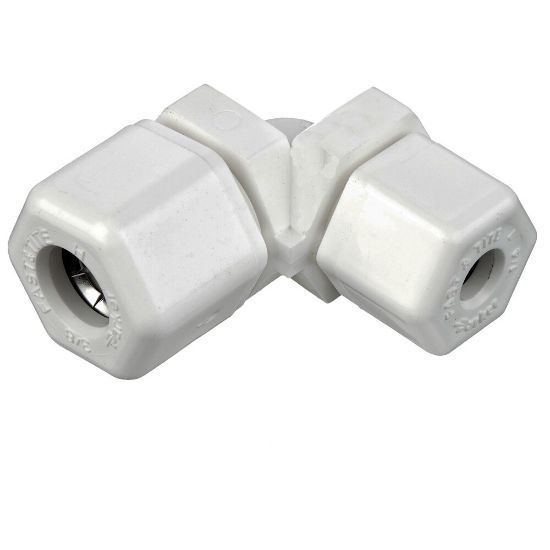

Picture of Compression Style Plastic Fittings, Fast-Tite - W10EU10

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compression Style Plastic Fittings, Fast-Tite - W10EU10

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.
Availability:
Backordered
SKU W10EU10
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection 1 TypeCompressionConnection 2 TypeCompression
ConfigurationTube to TubeConnection 2 Tube Outside Diameter5/8" (O.D.)
ShapeElbow 90°Body MaterialWhite Polypropylene
Connection 1 Tube Outside Diameter5/8" (O.D.)ApplicationFiltration, Purification, Dispensing
Minimum Operating Temperature0DivisionFluid System Connectors Division
Tube MaterialThermoplastic, Glass, Soft MetalO-Ring MaterialNitrile
Body MaterialPolypropyleneSpecifications MetFDA, NSF-51
Maximum Operating Temperature212Maximum Operating Pressure50
Gripping Ring Material302 Stainless SteelMediaWater, Air, Other Compatible Fluids
