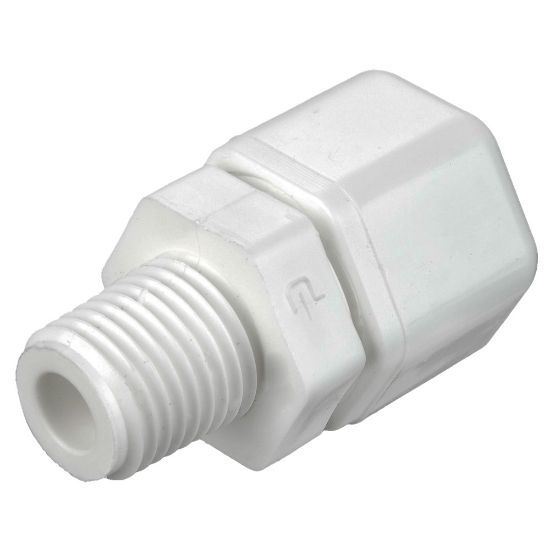

Picture of Compression Style Plastic Fittings, Fast-Tite - W4MC2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compression Style Plastic Fittings, Fast-Tite - W4MC2

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.
Availability:
Backordered
SKU W4MC2
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Product StyleConnectorConnection 1 Tube Outside Diameter1/4" (O.D.)
Body MaterialWhite PolypropyleneConnection 2 Thread Size1/8"
ConfigurationTube to PipeConnection 2 TypeNPTF
Connection 1 TypeCompressionMaximum Operating Temperature212
Body MaterialPolypropyleneGripping Ring MaterialStainless Steel AISI 302
Tube MaterialThermoplasticFor Fluid TypeWater
ApplicationPurificationDivisionFluid System Connectors Division
Maximum Operating Pressure300Seal MaterialNitrile (O-Ring)
Specifications MetFDAMinimum Operating Temperature0
