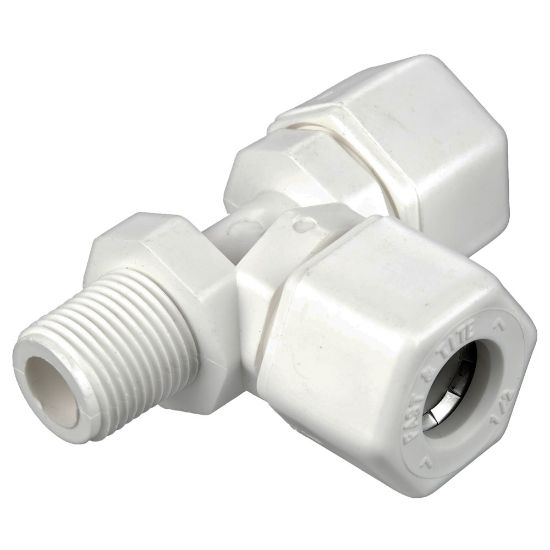

Picture of Compression Style Plastic Fittings, Fast-Tite - W6MR4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compression Style Plastic Fittings, Fast-Tite - W6MR4

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.
Availability:
Backordered
SKU W6MR4
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body MaterialWhite PolypropyleneConfigurationTube to Pipe
Connection 2 Thread Size1/4"ShapeRun Tee - Male
Connection 1 TypeCompressionConnection 1 Tube Outside Diameter3/8" (O.D.)
Connection 2 TypeNPTFTube MaterialThermoplastic
Gripping Ring MaterialStainless Steel AISI 302ApplicationFiltration
Maximum Operating Pressure150 psiMaximum Operating Temperature100 °C
For Fluid TypeWaterMinimum Operating Temperature-18 °C
Body MaterialPolypropyleneDivisionFluid System Connectors Division
Specifications MetFDASeal MaterialNitrile (O-Ring)
