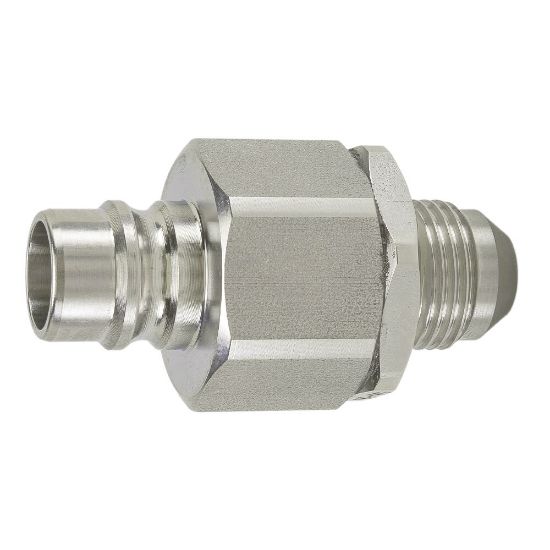

Picture of Connect Under Pressure, Multi-Purpose Quick Couplings - PH Series - VPHN8-8EM

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Connect Under Pressure, Multi-Purpose Quick Couplings - PH Series - VPHN8-8EM

Parker's general purpose connect under pressure quick couplers and nipples are versatile for use across a spectrum of applications where fluid lines require fast and easy connection and disconnection while under residual pressure
Availability:
Backordered
SKU VPHN8-8EM
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body Size (inch)1/2Coupling HalfMale Nipple
Connection Thread Size (inch)3/4 - 16Connection TypeMale SAE 37 degree flare
Minimum Operating Temperature-40 °FBody MaterialSteel
DivisionQuick Coupling DivisionSeal MaterialNitrile
Maximum Operating Temperature250 °FPlating TypeZinc with clear trivalent chromate
Product TypeManual ConnectValve TypePoppet
Maximum Operating Pressure4000 psiHex Size1.19 inch
ApplicationHydraulic, General Purpose
California Residents: Prop-65 Warning
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
