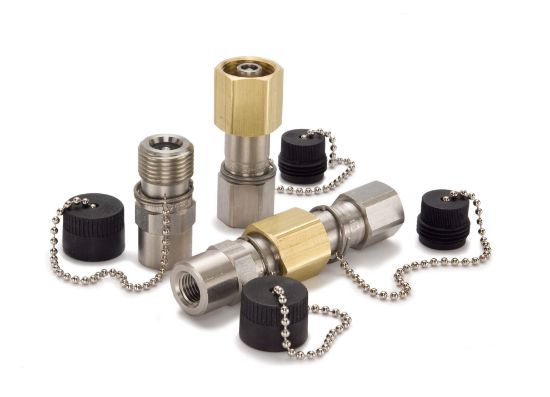

Picture of Connect Under Pressure Stainless Quick Couplings - 1141 Series - 1141-62-763

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Connect Under Pressure Stainless Quick Couplings - 1141 Series - 1141-62-763

Parker's high pressure, connect under pressure 1/4" quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU 1141-62-763
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Coupling HalfFemale CouplerMaximum Operating Pressure10000 psi
DivisionQuick Coupling DivisionMaximum Operating Temperature180 °F
Hex Size0.88Body Size1/4 inch
Valve TypePoppetApplicationHydraulic high pressure
Product TypeThread-to-ConnectBody Material316 Stainless steel body with 316 Stainless steel sleeve
Seal MaterialPolyurethaneConnection TypeFemale NPTF
Maximum Flow Rate3 Gal/minConnection Thread Size1/4 - 18 inch
Minimum Operating Temperature-30 °F
