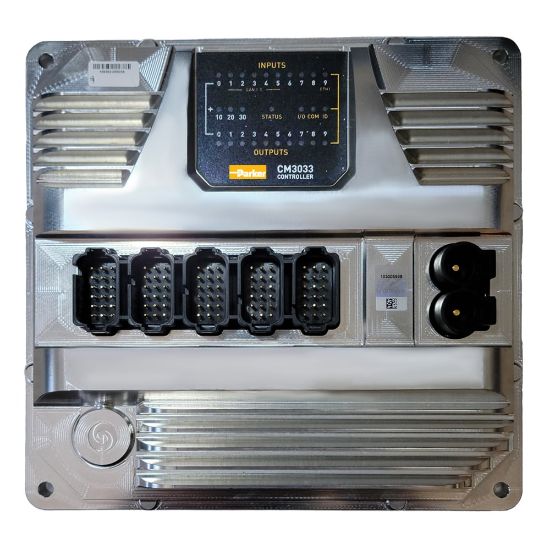

Picture of Controller Module - CM3033 - 1071004ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Controller Module - CM3033 - 1071004ECD

The CM3033 controller module for mobile vehicle applications has flexible I/O and 10A output capabilities. CM3033 is programmed in IQAN-open: Parker PEDS (CODESYS based)/MATLAB/C. Communication via SAE J1939 protocol over CAN bus.
Availability:
Backordered
SKU 1071004ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Minimum Operating Temperature-40 °CDivisionElectronic Motion and Controls Division
Housing MaterialAluminumMaximum Operating Temperature85 °C
IndustryMaterial HandlingController TypeMaster Controller
Output Current Rating10 ASpecifications MetSee product brochure for full details
Ingress Protection RatingIP69KSoftwareCODESYS, SIMULINK, C
Number of Inputs30Number of Outputs33
Power Supply Voltage10 to 32 VDCElectrical ConnectionDeutsch
Communication Interface5x CAN (2.0B, J1939)
