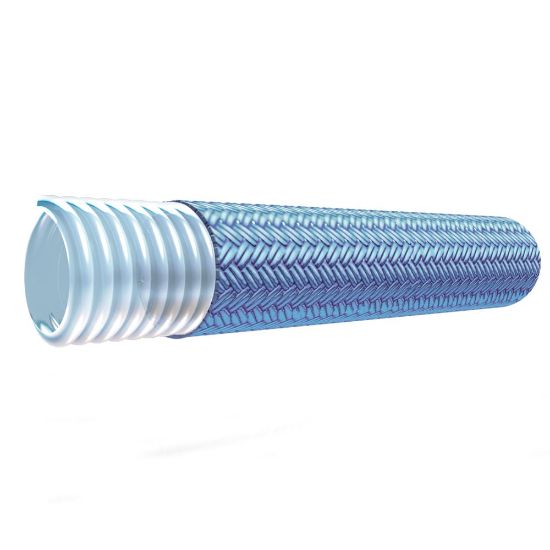

Convoluted PTFE Hose with Polypropylene Braid - PCW/PCB - 08-PCW

Name: Convoluted PTFE Hose with Polypropylene Braid - PCW/PCB - 08-PCW
SKU: 08-PCW

Polypropylene braided convoluted hoses are seamless, low profile, environmentally safe, and are 20% lighter than traditional stainless steel braided hoses for increased flexibility.

Availability:

Backordered

SKU 08-PCW

POR

Qty:

Products specifications

Attribute name	Attribute value
Hose Style	Natural, Polypropylene Braid	Hose I.D. (inch)	1/2
Division	Parflex Division	Media	Chemicals (Paint)
Product Type	PTFE Hose	Application	Fluid Handling
Cover Material	n/a	Compatible Fitting	PAGE Series
Specifications Met	FDA (Core Tube)	Vacuum Pressure Rating	28 Inch-Hg
Hose Inner Tube Material	Natural	Design Factor	4:1
Product Style	Convoluted	Minimum Bend Radius	1-1/2 inch
Maximum Operating Pressure	350 psi	Hose Reinforcement Material	Braid of Polypropylene
Maximum Operating Temperature	100 °C	Size	-8
Weight	0.22 kg/m	Inside Diameter	13 mm
Outside Diameter	21.3 mm	Minimum Operating Temperature	0 °F
