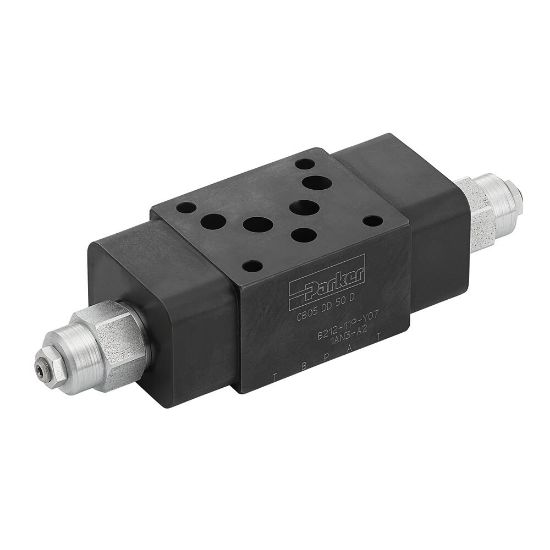

Picture of Counterbalance Sandwich Valve - CB Series - CB03BB30ND

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Counterbalance Sandwich Valve - CB Series - CB03BB30ND

Parker’s CB series counterbalance valve controls the actuator movement with overrunning loads.
Availability:
Backordered
SKU CB03BB30ND
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
SizeNFPA D03; CETOP 3; NG6Mounting TypeSubplate
Maximum Flow Rate15 GPMMaximum Operating Pressure5000 PSI
Body MaterialSteelSeal MaterialNitrile
Maximum Operating Pressure5000Maximum Operating Temperature176
DivisionHydraulic Valve Systems DivisionMaximum Flow Rate15
MediaOilActuation TypeHydraulic Pressure
Weight2.4Minimum Operating Temperature-7
Port ConnectionB PortSizeCETOP 3
Mounting TypeSubplateProduct StyleCounterbalance Valve
Pilot Pressure Ratio3:01Filter Efficiency RatingISO 4406 18/16/13 (meet NAS 1638:7)
Allowable Circuit Leakage5 DPM
