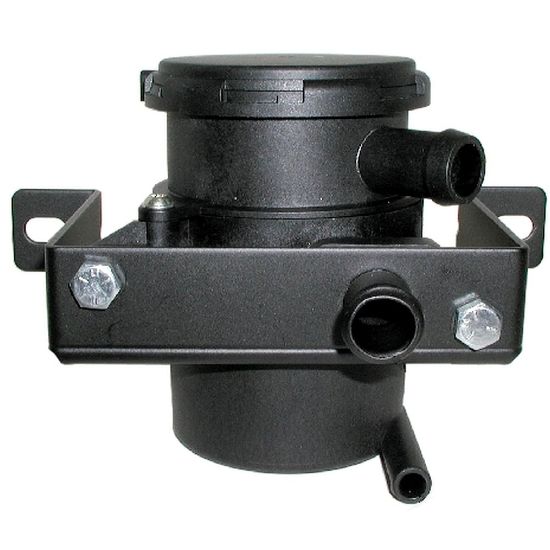

Crankcase Ventilation Systems (Open or Closed) – Racor CCV and CV Series - CCV1500-04

Name: Crankcase Ventilation Systems (Open or Closed) – Racor CCV and CV Series - CCV1500-04
SKU: CCV1500-04

Racor Crankcase Ventilation Systems prevent fouling of critical engine components, such as turbochargers and after-coolers, by removing oil contamination from engine bypass gases. Available in open (CV) and closed (CCV) configurations.

Availability:

Backordered

SKU CCV1500-04

POR

Qty:

Products specifications

Attribute name	Attribute value
Function	Intermittent Duty	Inlet Location	N/A
Maximum Output	40 HP / 30 kW	Maximum Flow Rate	1 cfm / 0.03 m3/m
Filtration Ratings	Low	Type/Configuration	Closed System
Division	Engine Mobile Original Equipment Division	Brand	Racor
Indicator Type	none	Depth	5 inch
Width	20.3 cm	For Fluid Type	Engine Blowby Gas
Drain	Drain Hose, Check Valve	Height	12.7 cm
Heat Type	Not Available	Port Size	3/4 inch Hose Bead
Mounting Type	Steel Strap Clamp	Interface Type	N/A
Product Series	CCV1500	Compatible Element	Low: CCV55365-04
Pressure Regulator Type	Vacuum Limiting Valve	Materials of Construction	Glass filled nylon and black powder epoxy-coated steel bracket
