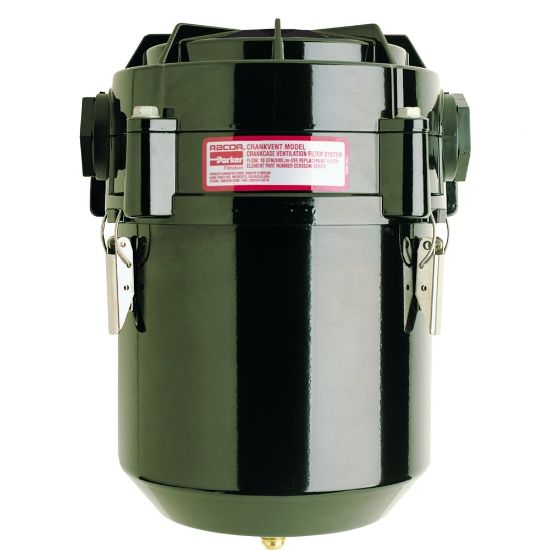

Crankcase Ventilation Systems (Open or Closed) – Racor CCV and CV Series - CV8001-08L

Name: Crankcase Ventilation Systems (Open or Closed) – Racor CCV and CV Series - CV8001-08L
SKU: CV8001-08L

Racor Crankcase Ventilation Systems prevent fouling of critical engine components, such as turbochargers and after-coolers, by removing oil contamination from engine bypass gases. Available in open (CV) and closed (CCV) configurations.

Availability:

Backordered

SKU CV8001-08L

POR

Qty:

Products specifications

Attribute name	Attribute value
Function	Non-Bypass Assembly	Inlet Location	Left
Filtration Ratings	High	Maximum Output	800 HP / 600 kW
Maximum Flow Rate	40 cfm / 1.13 m3/m	Type/Configuration	Open System
Division	Engine Mobile Original Equipment Division	Brand	Racor
Indicator Type	none	Width	10.6
For Fluid Type	Engine Blowby Gas	Depth	9.3
Drain	Drain Kit: Hose, Check Valve, (2) Swivel Fitting	Heat Type	100W Optional: CCV55462-24 (24VDC)
Port Size	1-7/8 inch SAE 12	Mounting Type	Integrated Head Bracket
Interface Type	N/A	Product Series	Cartridge Crankcase Ventilation
Materials of Construction	Die cast head, glass filled nylon and black powder epoxy-coated aluminium bowl	Height	13.2
Compatible Element	High: CCV55222-08	Pressure Regulator Type	None
