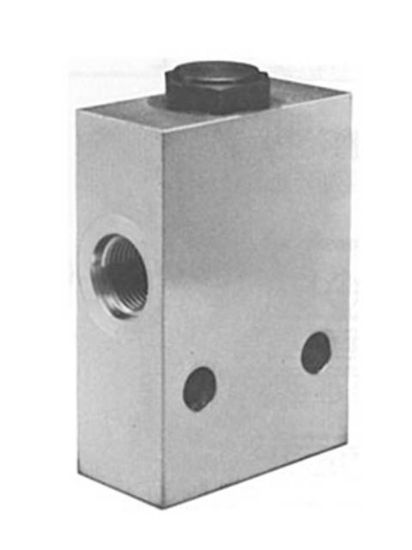

Picture of CSP103 Pilot Operated Check Valve - CSP103P150-A8T

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

CSP103 Pilot Operated Check Valve - CSP103P150-A8T

Pilot Piston Pilot Operated Check Valve
Availability:
Backordered
SKU CSP103P150-A8T
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPkg Qty/UOM1 EA
Pkg Qty1Body MaterialAluminum
Max Pressure210 Bar (3000 PSI)Port8 SAE
Operating Temperature-45C to +93.3C (-50F to +200F)Seals“D”-Ring
Rated Flow56 LPM (15 GPM)Leakage2 drops/min. (.13 cc/min.) at 350 Bar (5000 PSI)
Cracking Pressure10.4 Bar (150 PSI)Parker GroupHydraulic
Parker DivisionHydraulic Cartridge SystemsBody MaterialAluminum
Valve TypePilot Operated Check ValveSeriesCSP103
Operating Temperature-45C to +93.3C (-50F to +200F)Max Pressure210 Bar (3000 PSI)
Cracking Pressure10.4 Bar (150 PSI)Port8 SAE
Seals“D”-RingValve Type DetailPilot Piston
Rated Flow56 LPM (15 GPM)Leakage2 drops/min. (.13 cc/min.) at 350 Bar (5000 PSI)
