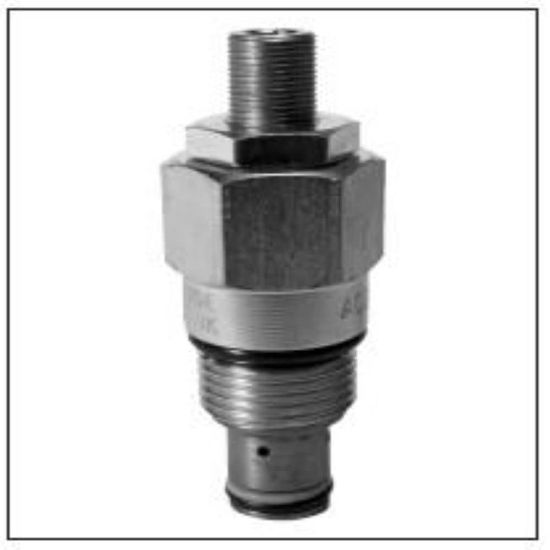

Direct Acting Relief Valves - A02A2HTNF

Name: Direct Acting Relief Valves - A02A2HTNF
SKU: A02A2HTNF

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Availability:

Backordered

SKU A02A2HTNF

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Flow Rate	1.6 GAL/MIN, 6 L/MIN
Adjustment Mechanism	Tamper Resistant	Pressure Control Range	145-3000 PSI, 10-210 BAR
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Seal Material	Nitrile
Body Material	n/a	Minimum Operating Temperature	-30
For Fluid Type	Synthetic Hydraulic Fluids	Valve Material	Steel (all parts)
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Temperature	250	Maximum Operating Pressure	6000
Weight	0.24	Function	Direct Acting
Flow Rate	1.6	Configuration	Pressure Relief
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Maximum Flow Rate	1.6	Maximum Pressure Setting	3000
Division	Mobile Hydraulic Systems Division Europe	Leak Rate	5 drops/min @ 1450 Psi (100 bar)
Cavity Size	C08-2	Operation Type	Automatic
Reseat Pressure	n/a	Installation Torque	30
Adjustment Mechanism	Tamper Resistant	Maximum Tank Pressure	6000
Operating Temperature	-30 to 250	Pressure Control Range	145 to 3000
Standard Setting Pressure	1400	Wire Mesh Screen Included	Yes
Pressure Control Sensitivity	435 psi Per Turn	Maximum Inlet Pressure Rating	6000
