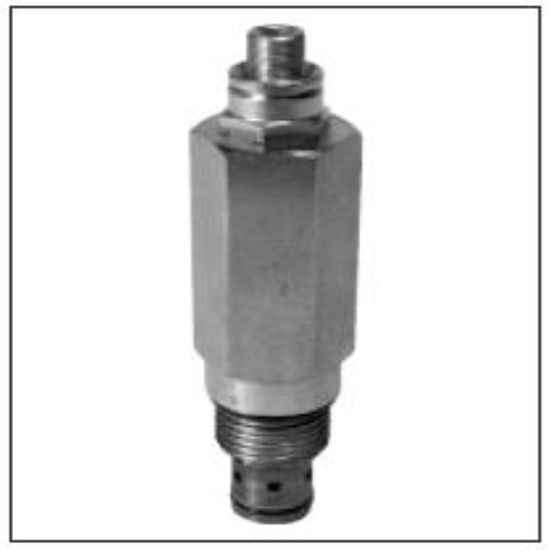

Direct Acting Relief Valves - A04B2HTN

Name: Direct Acting Relief Valves - A04B2HTN
SKU: A04B2HTN

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Availability:

Backordered

SKU A04B2HTN

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Adjustment Mechanism	Tamper Resistant
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	28 GAL/MIN, 100 L/MIN
Pressure Control Range	72-3000 PSI, 5-210 BAR	Seal Material	Nitrile
Body Material	n/a	Minimum Operating Temperature	-30
For Fluid Type	Mineral-based Hydraulic Fluids	Valve Material	Steel (all parts)
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Temperature	250	Maximum Operating Pressure	6000
Weight	0.62	Function	Direct Acting
Configuration	Pressure Relief	Mounting Type	Screw-in Cartridge
Actuation Type	Pressure Sensing	Maximum Pressure Setting	3000
Division	Mobile Hydraulic Systems Division Europe	Leak Rate	5 drops/min @ 1450 Psi (100 bar)
Operation Type	Automatic	Reseat Pressure	n/a
Adjustment Mechanism	Tamper Resistant	Maximum Tank Pressure	6000
Operating Temperature	-30 to 250	Wire Mesh Screen Included	n/a
Maximum Inlet Pressure Rating	6000	Flow Rate	26
Cavity Size	C10-2	Maximum Flow Rate	26
Installation Torque	37	Pressure Control Range	72 to 3000
Standard Setting Pressure	1450	Pressure Control Sensitivity	305 psi Per Turn
