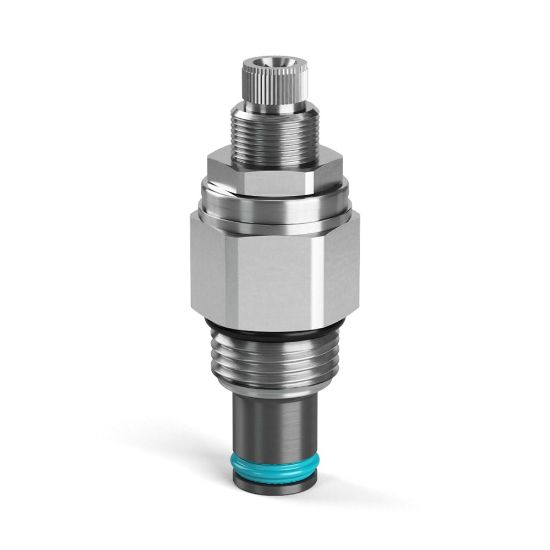

Direct Acting Relief Valves - RDH081F50V

Name: Direct Acting Relief Valves - RDH081F50V
SKU: RDH081F50V

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Availability:

Backordered

SKU RDH081F50V

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Adjustment Mechanism	Fixed
Maximum Inlet Pressure Rating	5500 PSI, 380 BAR	Pressure Control Range	200-5000 PSI, 13.8-350 BAR
Flow Rate	0.5 GAL/MIN, 1.9 L/MIN	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15
Weight	0.2	Maximum Operating Pressure	5500
Function	Direct Acting	Configuration	Pressure Relief
Actuation Type	Pressure Sensing	Cavity Size	C08-2
Operation Type	Automatic	Wire Mesh Screen Included	n/a
Maximum Tank Pressure	5000	Maximum Pressure Setting	5000
Pressure Control Sensitivity	n/a	Adjustment Mechanism	Fixed
Maximum Inlet Pressure Rating	5500	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400	Maximum Operating Temperature	+400
Mounting Type	Screw in cartridge valve	Installation Torque	32-36
Maximum Flow Rate	0.5	Flow Rate	0.5
Standard Setting Pressure	2500	Pressure Control Range	200-5000
Reseat Pressure	90% of pressure setting	Leak Rate	5 @ 75% Crack Pressure
