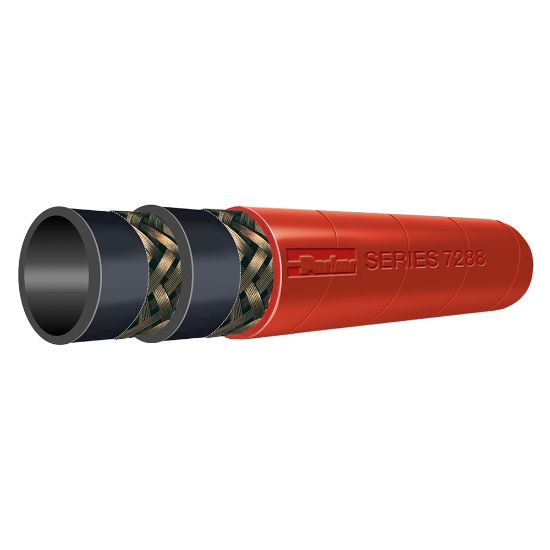

DRAGON BREATH® 250 Oil Resistant Steam Hose, Series 7288 - 7288-1002A

Dragon Breath® 250 Oil Resistant Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi, Series 7288
Availability:
Backordered
SKU 7288-1002A
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Standard Pack Qty (ft)500Hose I.D. (inch)1
Maximum Working Pressure (psi)250DivisionHose Products Division
Minimum Operating Temperature-20Minimum Bend Radius12
Inside Diameter1Cover ColorRed
Package TypeReelHose Inner Tube MaterialEthylene Propylene Diene Monomer (EPDM)
Cover MaterialChloroprene Rubber (CR)Cover StructurePerforated
Hose Reinforcement Material2 Braids of WireMediaSteam (Saturated)
Weight0.9ApplicationSteam
Outside Diameter1.594Specifications MetARPM Class B Cover
Maximum Operating Pressure17.2 bar (Superheated Steam)Maximum Operating Temperature207 °C (Saturated Steam)
