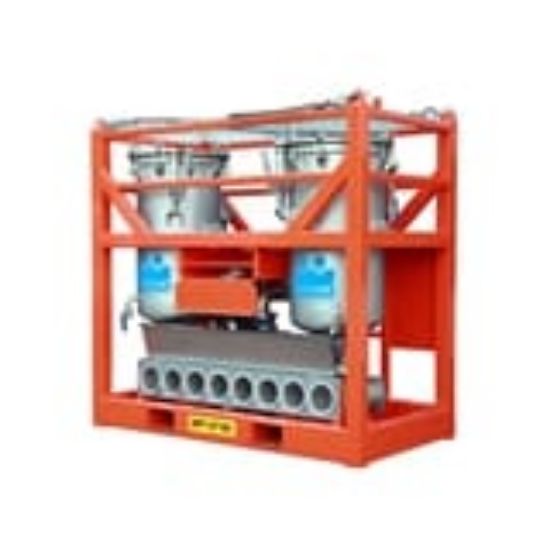

Picture of Dual Vessel Filter Unit - TDW610-50-40-4B

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Dual Vessel Filter Unit - TDW610-50-40-4B

This offshore proof, skid mounted filter unit offers a cost effective way to clean most common oilfield fluids and fluid-waste streams.
Availability:
Backordered
SKU TDW610-50-40-4B
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Type/ConfigurationCombination Cartridge 40" 2OF/222 and Bag L2Vessel Size24 inch Others on request.
Height7.22Connection Size6 inch Union Fig. 100 M/F SS316L with O-ring Seal
ATEX Specifications MetATEX Zone 2 compliantWidth3.94
For Fluid TypeFluid group 2 (non-hazardous fluids)Industry ApplicationService Company
Maximum Operating Pressure101.5DivisionIndustrial Process Filtration Division
Product TypeFiltrationMaterials of ConstructionFrame: Carbon Steel (Powder Coated RAL 5015 others on request)<br/>Wetted parts: SS316L, suitable for H2S acc. NACE MR0175 <br/><br/>
Maximum Operating Temperature158.0BrandTwin Filter
Maximum Flow Rate12 Bbl/minLength7.38
Pressure Relief Valve Type1" Brass Set Point @ 7 bar (101.5 psi)Weight3306
Specifications MetFrame: DNV 2.7-1 (2013), EN/12079
Product resources

Literature and Reference Materials
