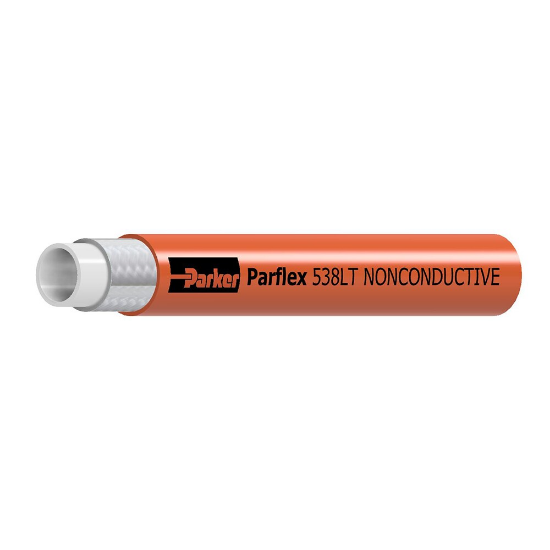

DuraMax™ Low Temperature 3,000 PSI Hydraulic Hose - 53LT/538LT - 538LT-6

Name: DuraMax™ Low Temperature 3,000 PSI Hydraulic Hose - 53LT/538LT - 538LT-6
SKU: 538LT-6

53LT/538LT low temperature hose is 100R18 compliant and offers superior flexibility in cold temperature applications.

Availability:

Backordered

SKU 538LT-6

POR

Qty:

Products specifications

Attribute name	Attribute value
Hose Type	Non-conductive	Inside Diameter	3/8"
Division	Parflex Division	Design Factor	4:1
Size	-6	Inside Diameter	3/8
Maximum Operating Temperature	212	Minimum Bend Radius	2
Compatible Fitting	56 Series	Hose Reinforcement Material	Fiber
Application	Hydraulics	Media	Lubricants (Oils)
Minimum Operating Temperature	-70	Weight	0.10
Maximum Operating Pressure	3045	Cover Material	Copolyester
Outside Diameter	0.66	Specifications Met	SAE J517 100R18
Hose Inner Tube Material	Nylon

Product resources

Compliance, Certifications & Safety

Parflex Manitowoc ISO 9001 Certificate (PDF)

Literature and Reference Materials

Catalog 4660 Parflex Thermoplastic & Fluoropolymer Hose and Tubing--CAT-4660 (PDF)
