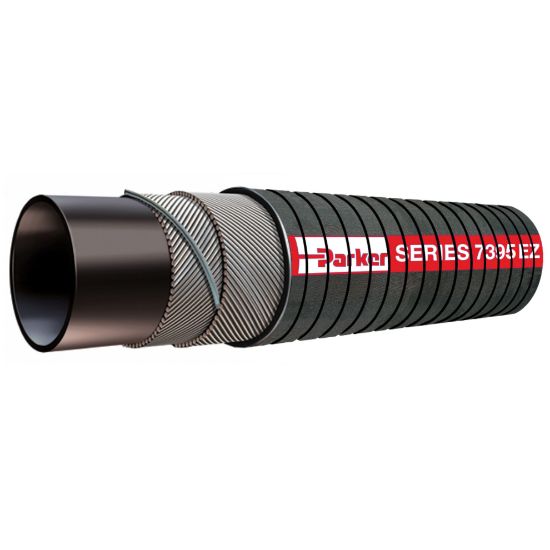

Picture of E-Z Form GS Suction Hose, General Service, Series 7395 - 7395-1000300-RED

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

E-Z Form GS Suction Hose, General Service, Series 7395 - 7395-1000300-RED

E-Z Form GS Greek Corrugated General Service Suction Hose is flexible hose designed for transfer of air, coolant, mild chemicals and water in industrial and mobile applications to 257°F and 75 psi, Series 7395
Availability:
Backordered
SKU 7395-1000300-RED
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1Maximum Working Pressure (psi)150
Standard Pack Qty (ft)300DivisionHose Products Division
Design Factor4:1Cover ColorBlack
Inside Diameter1Maximum Operating Pressure150
ApplicationEngineMediaCoolants
Minimum Operating Temperature-50Maximum Operating Temperature257
Outside Diameter1.4Cover StructureGreek-Corrugated
Minimum Bend Radius1.4Compatible FittingHY
Weight0.41Package TypeCarton 50 ft
Cover MaterialEPDM Greek corrugated finishSpecifications MetSAE J20R2-D1
Vacuum Pressure Rating737Hose Inner Tube MaterialEthylene Propylene Diene Monomer (EPDM) Peroxide cured
Hose Reinforcement MaterialMultiple Braids or Plies of Textile with Wire Helix
