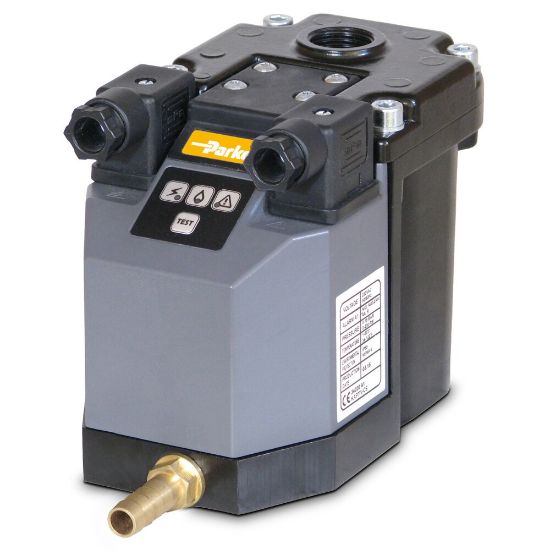

Picture of ED4100 Series Electronic Level Sensing Condensate Drains (up to 50 bar g) - ED4100/50-G24D

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

ED4100 Series Electronic Level Sensing Condensate Drains (up to 50 bar g) - ED4100/50-G24D

Automatic zero air loss level sensing condensate drains for industrial compressed air treatment applications up to 50 barg.
Availability:
Backordered
SKU ED4100/50-G24D
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Electrical Requirements24 VDCFlow RateFilter: 60000 m³/h (35316 cfm)
Port SizeInlet: ½ inch Outlet: ¼ inchApplicationCompressed Air Applications
Operating Pressure232 to 725 psig MaximumProduct StyleElectronic Level Sensing Drain
Width7 inchConnection TypeBSPP or NPT
Flow Rate12000.0 m3/hour (Aftercooler, Air Receiver)Specifications MetPED 97/23/EC<br/>EMC 2004/108/EU<br/>LVD 2006/95/EU
Height116.0 mmProduct SeriesED4100
Operating Temperature2 to 35 °CDepth3.4 inch
Ingress Protection RatingIP65DivisionGas Separation and Filtration Division EMEA
DivisionGas Separation and Filtration Division EMEAWeight1.9 kg
BrandPARKERIndustryIndustrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/>Electronics<br/>Pharmaceuticals
Materials of ConstructionCondensate Housing: Aluminum, Anodized<br/>Housing lid with sensor: PBT<br/>Housing Seals: NBR<br/>2/2 Way Valve: Stainless Steel / Bronze<br/>Valve Seal: FPM<br/>Dirt Filter: Stainless Steel<br/>Locking screws, outlet spout: Plated Brass<br/>Product TypeCondensate Drain
TechnologyFiltration
