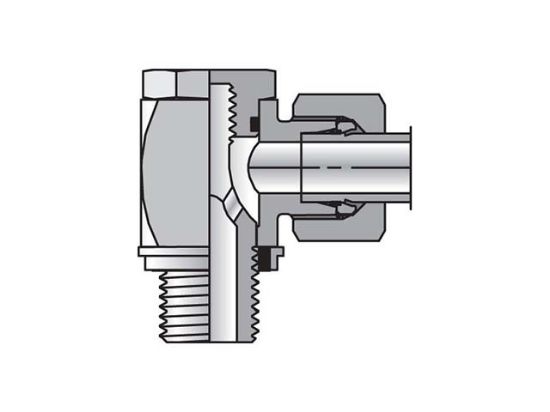

Picture of EO/EO-2 90° Elbow, High Pressure Banjo - WH-R-KDS - WH08LRKD71

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

EO/EO-2 90° Elbow, High Pressure Banjo - WH-R-KDS - WH08LRKD71

EO/EO-2 90° Elbow, High Pressure Banjo - 24° Flareless / Metric Parallel
Availability:
Backordered
SKU WH08LRKD71
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Pressure Rating315 barO-Ring/Seal MaterialFluorocarbon
End 18 mmUOMEA
Pkg Qty2MaterialStainless Steel
Pressure SeriesLightEnd 2G 1/4 BSPP
MaterialStainless SteelEnd 2G 1/4 BSPP
O-Ring/Seal MaterialFluorocarbonConfiguration Sub-TypeHigh Pressure Banjo - 24° Flareless / Metric Parallel
Parker GroupFluid ConnectorTrade NameEO/EO-2
Pressure Rating315 barEnd 1 Typemm
Pressure SeriesLightSeriesEO
Tube Fitting/Adapter TypeBite Type, EO/EO-2 FlarelessEnd 18 mm
Parker DivisionTube FittingEnd 2 TypeBSPP
Configuration Type90° ElbowInch/MetricMetric
