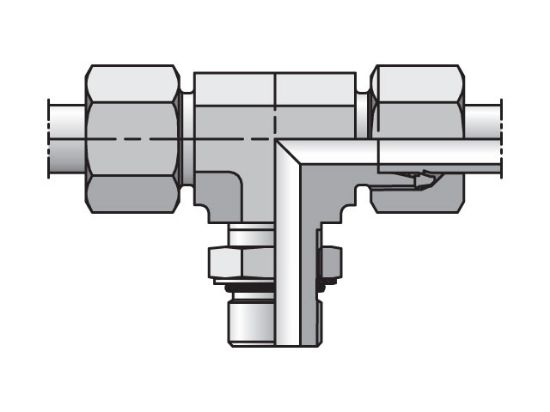

EO/EO-2 Tee, Adjustable Branch - TEE-UNF - TEE12ZL9/16UNFCF

Name: EO/EO-2 Tee, Adjustable Branch - TEE-UNF - TEE12ZL9/16UNFCF
SKU: TEE12ZL9/16UNFCF

EO/EO-2 Tee, Adjustable Branch - 24° Flareless / SAE-ORB

Availability:

Backordered

SKU TEE12ZL9/16UNFCF

POR

Qty:

Products specifications

Attribute name	Attribute value
Pressure Series	Light	End 1	12 mm
Pressure Rating	315 bar	End 3	9/16-18 UN/UNF-2A
Pkg Qty	10	EO-2 Seal	Nitrile
O-Ring/Seal Material	Nitrile	Material	Steel
UOM	EA	End 2	12 mm
Configuration Sub-Type	Adjustable Branch - 24° Flareless / SAE-ORB	O-Ring/Seal Material	Nitrile
Configuration Type	Tee	EO-2 Seal	Nitrile
Parker Group	Fluid Connector	End 1 Type	mm
End 2 Type	mm	Trade Name	EO/EO-2
Pressure Series	Light	Pressure Rating	315 bar
Inch/Metric	Metric	Parker Division	Tube Fitting
End 2	12 mm	Material	Steel
End 3 Type	UN/UNF-2A	Series	EO-2
Tube Fitting/Adapter Type	Bite Type, EO/EO-2 Flareless	End 1	12 mm
End 3	9/16-18 UN/UNF-2A
