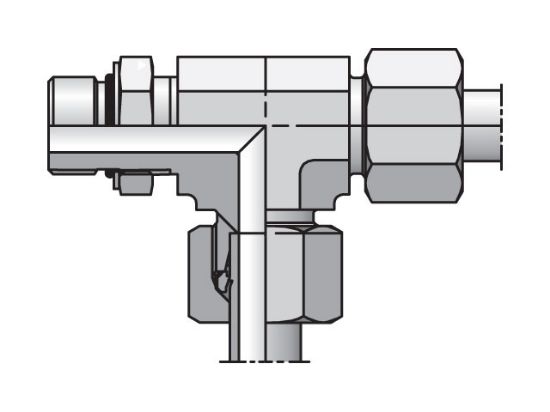

EO/EO-2 Tee, Adjustable Run - LEE-UNF - LEE18ZL11/16UNCF

Name: EO/EO-2 Tee, Adjustable Run - LEE-UNF - LEE18ZL11/16UNCF
SKU: LEE18ZL11/16UNCF

EO/EO-2 Tee, Adjustable Run - 24° Flareless / SAE-ORB

Availability:

Backordered

SKU LEE18ZL11/16UNCF

POR

Qty:

Products specifications

Attribute name	Attribute value
Material	Steel	UOM	EA
Pkg Qty	5	End 1	18 mm
End 3	1 1/16-12 UN/UNF-2A	End 2	18 mm
Pressure Series	Light	Pressure Rating	315 bar
EO-2 Seal	Nitrile	O-Ring/Seal Material	Nitrile
Parker Group	Fluid Connector	Parker Division	Tube Fitting
Material	Steel	Configuration Type	Tee
Inch/Metric	Metric	End 3 Type	UN/UNF-2A
End 1	18 mm	End 1 Type	mm
End 3	1 1/16-12 UN/UNF-2A	End 2	18 mm
End 2 Type	mm	Trade Name	EO/EO-2
Tube Fitting/Adapter Type	Bite Type, EO/EO-2 Flareless	Pressure Series	Light
Series	EO-2	Pressure Rating	315 bar
EO-2 Seal	Nitrile	O-Ring/Seal Material	Nitrile
Configuration Sub-Type	Adjustable Run - 24° Flareless / SAE-ORB
