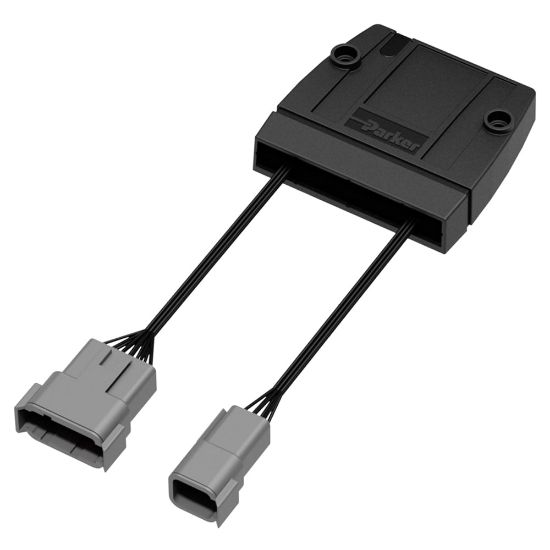

Expansion controllers - IQAN-XC21/XC22/XC23 - 20077784

Name: Expansion controllers - IQAN-XC21/XC22/XC23 - 20077784
SKU: 20077784

Parker's IQAN-XC21/XC22/XC23 expansion modules can be added to an IQAN system to increase I/O. They have voltage, digital, PWM and frequency inputs. The outputs are digital. The modules communicate with an IQAN master module over a CAN bus connection.

Availability:

Backordered

SKU 20077784

POR

Qty:

Products specifications

Attribute name	Attribute value
Model Number	IQAN-XC22	Electrical Connection	Deutsch DTM
Industry	Forestry	Number of Inputs	12
Maximum Operating Temperature	70 °C	Output Current Rating	300 mA
Minimum Operating Temperature	-30 °C	Housing Material	Plastic
Controller Type	Slave/Expansion Module	Ingress Protection Rating	66
Number of Outputs	8	Power Supply Voltage	9 to 32 VDC
Division	Electronic Motion and Controls Division	Specifications Met	2004/108/EC
