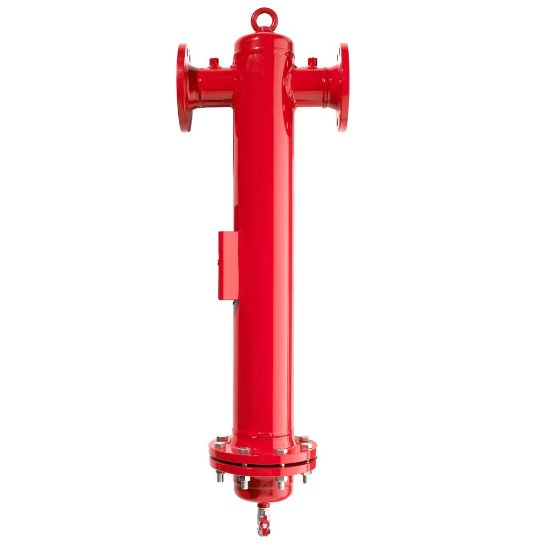

F-CNG Series Filters for Compressed Natural Gas (CNG) - F14XPDH/CNG

Name: F-CNG Series Filters for Compressed Natural Gas (CNG) - F14XPDH/CNG
SKU: F14XPDH/CNG

Parker Zander F-CNG series fabricated carbon filters for CNG filtration applications up to 16 bar(g).

Availability:

Backordered

SKU F14XPDH/CNG

POR

Qty:

Products specifications

Attribute name	Attribute value
Micron Rating	0,01	Maximum Flow Rate (m³/h)	940
Port Connection	DN50	Pre-Installed Optional Accessories	Differential Pressure Gauge
Division	Gas Separation and Filtration Division EMEA	Number of Elements	1
Element Change Interval	12 Months	Maximum Operating Temperature	80
Maximum Operating Pressure	16	Weight	32
Brand	Zander	Connection Type	Flanged
Application	Filtration of gaseous nitrogen	Specifications Met	on request
Minimum Operating Temperature	1	Width	380
Height	930	Maximum Flow Rate	553.27
Compatible Element	3075XP/CNG	Filter Type	Oil Removal Filter
Residual Oil Content	0,01 @ 20° C mg/m³/h	Filter Efficiency Rating	99.99999
Materials of Construction	Housing: Steel, Seals: C4400	Pre-Treatment Requirement	ZL grade pre-filter necessary

Product resources

Literature and Reference Materials

Product Bulletin - Biogas and Biomethane Filters (G-CNG / F-CNG / TGE) - (English) (PDF)
User Manual - G-CNG and F-CNG Series Filters for Compressed Natural Gas (CNG) - (English) (PDF)
