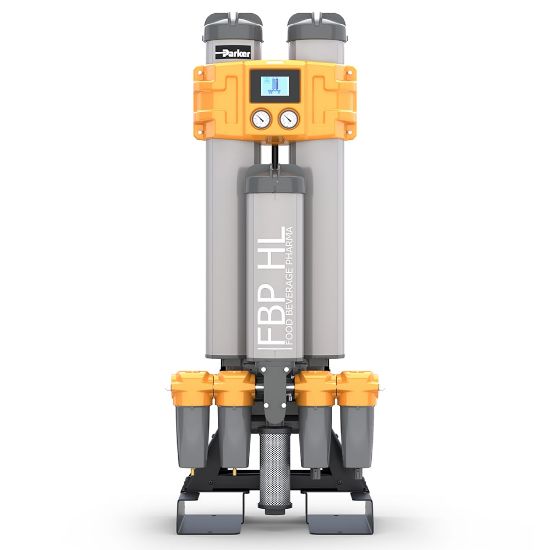

Picture of FBP HL Medium Flow Heatless Compressed Air Dryer System - FBPHL050-40G16AE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

FBP HL Medium Flow Heatless Compressed Air Dryer System - FBPHL050-40G16AE

FDA approved medium flow compressed air treatment systems, providing flow rates up to 300 m³/hr @ 7 barg. Suitable for food, beverage and pharmaceutical compressed air applications.
Availability:
Backordered
SKU FBPHL050-40G16AE
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Pressure Dew Point-40°C (-40°F) or -20°C (-4°F)Electrical Requirements85 - 265V 1ph 50/60Hz
Connection TypeBSPPPort Size½ inch
Flow Rate55 m³/h @ 7 barg (32 cfm @ 102 psig)ISO GradeClass 1.2.0 or Class 1.3.0
Height45 inchApplicationCompressed Air Applications
Product TypeCompressed Air DryerIndustryFood & Beverage<br/>Pharmaceuticals
Weight91 kgNoise Level< 75 dBA
Specifications MetPED 2014/68/EU Fluid Group IIAmbient Temperature55.0 °C Maximum
DivisionGas Separation and Filtration Division EMEAProduct StyleHeatless
Width559.0 mmOperating Pressure4 to 16 barg
Operating Temperature5 to 50 °CBrandPARKER
DivisionGas Separation and Filtration Division EMEAProduct SeriesFBP
TechnologyFiltrationIngress Protection RatingIP55 Indoor Use Only
Depth20.2 inch
