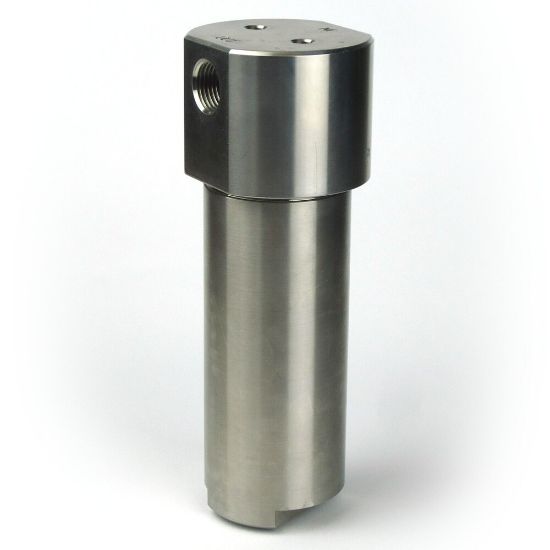

Picture of FFC-113 Compressed Air & Gas Filter - Up To 3600 PSIG - FFC-113-6

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

FFC-113 Compressed Air & Gas Filter - Up To 3600 PSIG - FFC-113-6

Parker Finite inline compressed air and gas FFC-113 replacement filters are used commonly onboard CNG (Compressed Natural Gas) powered vehicles.
Availability:
Backordered
SKU FFC-113-6
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Micron Rating (µm)0.01Filter Rating (%)99.97
Maximum Flow Rate (cfm)25 to 788Maximum Operating Temperature105 °C
Optional AccessoriesNo AccessoriesFilter TypeCoalescer
Port Size1/2 inchHeight204.7 mm
Head MaterialStainless SteelBrandFinite
DivisionIndustrial Gas Filtration and Generation DivisionSeal MaterialFluorocarbon
Compatible ElementFFC-113 Replacement ElementDrain Port Size-
Width2.97 inchSpecifications Met-
Minimum Operating Temperature-40 °CBowl TypeStandard
Connection TypeNPTMaximum Operating Pressure248 barg
Plating TypeN/RApplicationCNG onboard
Weight5.5 lb
Product resources

Literature and Reference Materials
