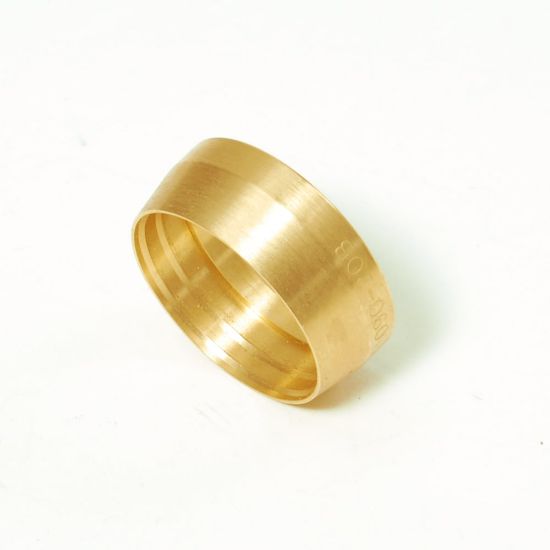

Field Attachable Fittings for PTFE Hose - 90 Series - 090-10B

Name: Field Attachable Fittings for PTFE Hose - 90 Series - 090-10B
SKU: 090-10B

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Availability:

Backordered

SKU 090-10B

POR

Qty:

Products specifications

Attribute name	Attribute value
Length (inch)	n/a	Product Style	Replacement Ferrule
Hose I.D. (inch)	0.5"	Body Material	Brass
Specifications Met	N/A	Division	Parflex Division
Product Series	90	Brand	PARKER
Shape	Straight	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size	n/a
Industry	Transportation	Hex Size 1	n/a
Technology	Fluid & Gas Handling	Application	Semiconductor
Product Type	Hose Fittings	Configuration	Hose to Port
Fitting Length	n/a	For Fluid Type	Hydraulic Fluids
Connection 1 Size	-10 (Size)	Connection 1 Type	Hose
Connection 2 Size	n/a	Connection 2 Type	Replacement Ferrule
Connection Length	n/a Cut-off allowance (see drawing legend B)	Tube Outside Diameter	n/a
Maximum Operating Pressure	3000 psi (Dependent on hose)
