Picture of Field Attachable Fittings for PTFE Hose - 90 Series - 22890-5-6

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

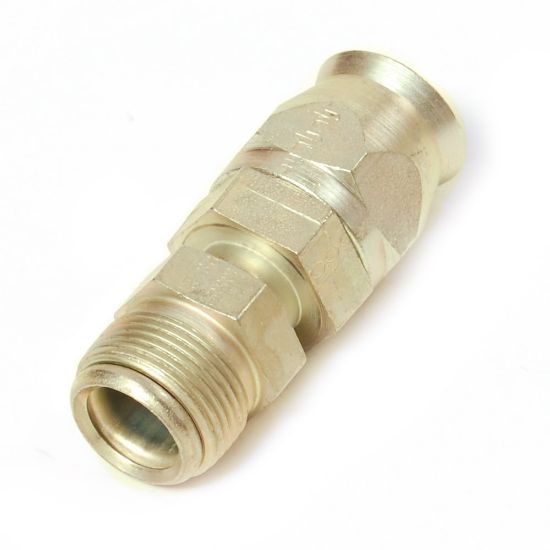

Field Attachable Fittings for PTFE Hose - 90 Series - 22890-5-6

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.
Availability:
Backordered
SKU 22890-5-6
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)0.313"Length (inch)2.15"
Connection 2 Size1/2"-20Product StyleMale Inverted SAE 45° - Swivel - Straight
BrandPARKERDivisionParflex Division
Body MaterialSteelShapeStraight
IndustryTransportationTechnologyFluid & Gas Handling
Connection 2 TypeMaleSpecifications MetN/A
ApplicationSemiconductorProduct Series90
CoatingChromium 6 Free-platedDivisionParflex Division
Product TypeHose FittingsConfigurationHose to Port
Connection 1 Size-6 (Size)Connection 1 TypeHose
Tube Outside Diametern/aMaximum Operating Pressure3000 psi (Dependent on hose)
Hex Size11/16 inch (see drawing legend H)For Fluid TypePharmaceutical Fluids
Connection 2 Size1/2"-20 inch ThreadHex Size 11/2 inch (see drawing legend J)
Connection Length1-11/16 inch Cut-off allowance (see drawing legend B)Fitting Length2.20 inch (see drawing legend A)
