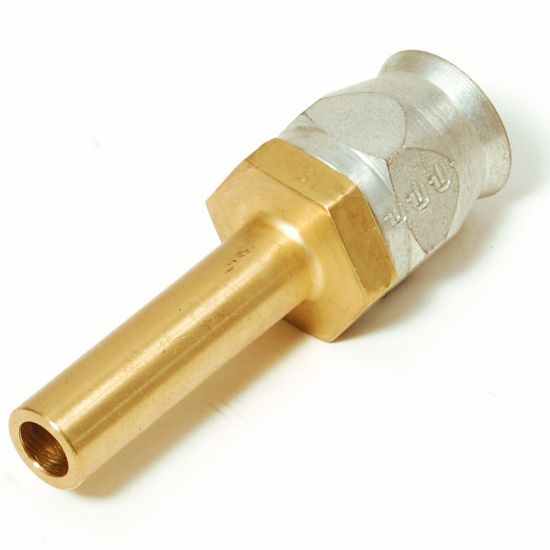

Picture of Field Attachable Fittings for PTFE Hose - 90 Series - 23490-8-10

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Field Attachable Fittings for PTFE Hose - 90 Series - 23490-8-10

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.
Availability:
Backordered
SKU 23490-8-10
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)0.5"Product StyleMale Standpipe - Rigid - Straight (Inch Size Tube O.D.)
Length (inch)3.15"BrandPARKER
DivisionParflex DivisionShapeStraight
IndustryTransportationTechnologyFluid & Gas Handling
Connection 2 TypeMaleSpecifications MetN/A
ApplicationSemiconductorProduct Series90
CoatingChromium 6 Free-platedDivisionParflex Division
Product TypeHose FittingsConfigurationHose to Port
For Fluid TypeHydraulic FluidsConnection 1 Size-10 (Size)
Connection 1 TypeHoseConnection 2 Sizen/a
Tube Outside Diametern/aMaximum Operating Pressure3000 psi (Dependent on hose)
Hex Size1 inch (see drawing legend H)Hex Size 11 inch (see drawing legend J)
Connection Length2-1/2 inch Cut-off allowance (see drawing legend B)Fitting Length3.15 inch (see drawing legend A)
Body MaterialSteel (Socket)
