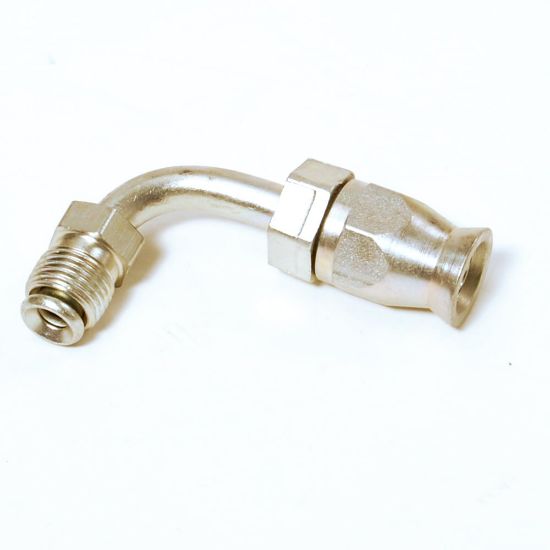

Field Attachable Fittings for PTFE Hose - 90 Series - 26990-5-5

Name: Field Attachable Fittings for PTFE Hose - 90 Series - 26990-5-5
SKU: 26990-5-5

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Availability:

Backordered

SKU 26990-5-5

POR

Qty:

Products specifications

Attribute name	Attribute value
Hose I.D. (inch)	0.25"	Connection 2 Size	1/2"-20
Length (inch)	2.05"	Product Style	Male Inverted Swivel 90° Elbow
Brand	PARKER	Division	Parflex Division
Body Material	Steel	Industry	Transportation
Technology	Fluid & Gas Handling	Maximum Operating Pressure	207 bar
Specifications Met	N/A	Product Series	90
Coating	Chromium 6 Free-plated	Division	Parflex Division
Product Type	Hose Fittings	Configuration	Hose to Port
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Hex Size	5/8 inch (see drawing legend H)	For Fluid Type	Pharmaceutical Fluids
Connection 1 Size	6.35 mm	Connection 2 Size	1/2"-20 inch Thread
Hex Size 1	1/2 inch (see drawing legend J)	Application	Pneumatics
Fitting Length	2.01 inch (see drawing legend A)	Shape	Elbow 90°
Connection 2 Type	Inverted	Connection Length	56 mm
