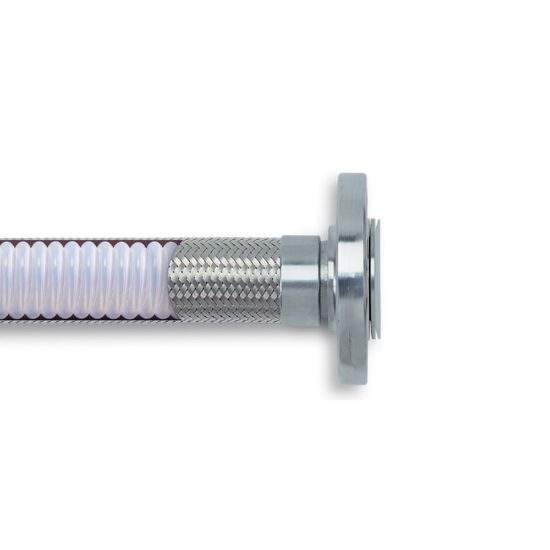

Picture of Flare-Seal® Heavy Wall Convoluted PTFE Hose - 08-SCWV-FS

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Flare-Seal® Heavy Wall Convoluted PTFE Hose - 08-SCWV-FS

Flare-Seal® assemblies increase flow by providing smooth, clean connections and preventing bacterial entrapment. They are available with a stainless steel braid, polypropylene braid or other optional braids for fluid handling and paint applications.
Availability:
Backordered
SKU 08-SCWV-FS
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1/2Hose StyleNatural, Stainless Steel Braid
DivisionParflex DivisionMediaChemicals (Paint)
ApplicationChemical TransferCover Materialn/a
Compatible FittingPAGE SeriesHose Inner Tube MaterialPolytetrafluoroethylene (PTFE)
Cover ColorNaturalDesign Factor4:1
Vacuum Pressure Rating28Maximum Operating Temperature500
Size-8Weight0.17
Inside Diameter1/2Outside Diameter0.760
Specifications MetFDA 21 CFR 177.1550Minimum Bend Radius2
Maximum Operating Pressure500Hose Reinforcement MaterialBraid of 316 Stainless Steel
Minimum Operating Temperature-100
