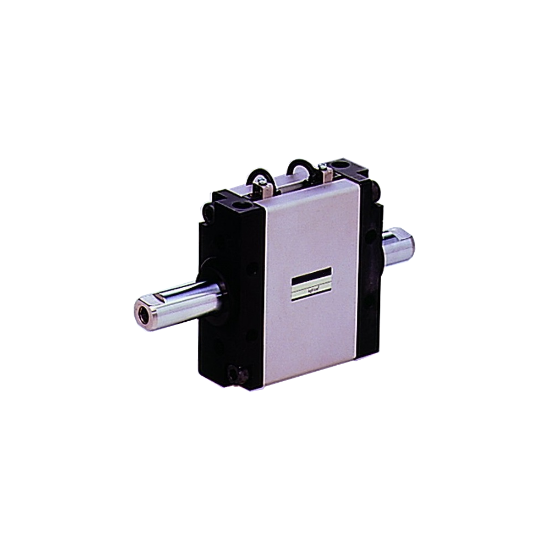

Picture of Flat Cylinder Model:10F-2 - 10F-2SR

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Flat Cylinder Model:10F-2 - 10F-2SR

Thin type flat cylinder 10F-2 series is ideal for use at narrow space by narrowing width of cylinder with piston shaped oval. The switch is a system-up type that allows you to install a magnetic proximity switch later.
Availability:
Backordered
SKU 10F-2SR
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Screw ToleranceJIS 6g/6HFluid TypeAir
LubricationUnnecessary(But possible)Pressure Range (MPa)0.1-1.0
Proof Pressure (MPa)1.5Body MaterialAluminum alloy
TypeDouble Acting Single Rod, Spring Return TypeSpeed Range50-500mm/s
Mounting StyleSD,LB,FA,FB,CA,CBRod End StylesRod eye(T-end), Rod clevis(Y-end)with pin
Cushioning TypeWith cushion pads on both endsBacklash Accuracy±1.0°(φ25 or equivalent), ±0.8°(φ32 or equivalent), ±0.5°(φ50 or equivalent)
Bore Diameter (mm)25 or equivalent, 32 or equivalent, 50 or equivalentRod End Thread TypeFemale thread and male thread
Temperature Range (C)-10-+60(No freezing)Stroke Length Tolerance (mm)0-+1.0
Allowable Rotational Torque (N・m)0.981(φ25 or equivalent), 1.57(φ32 or equivalent), 3.92(φ50 or equivalent)DivisionTAIYO Division
