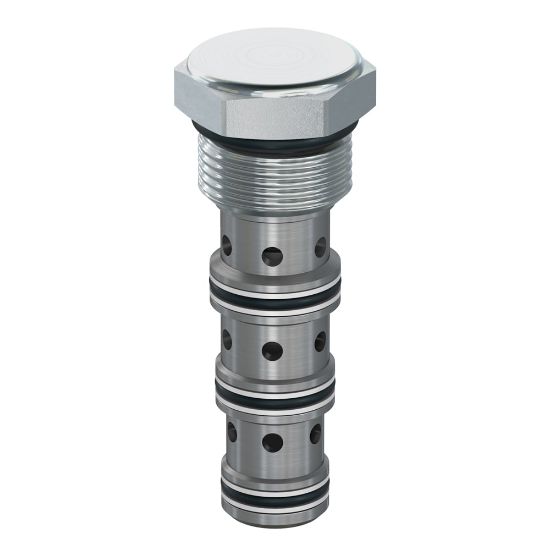

Flow Divider/Combiner Valves - FDC101D63

Name: Flow Divider/Combiner Valves - FDC101D63
SKU: FDC101D63

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Availability:

Backordered

SKU FDC101D63

POR

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	12 GAL/MIN, 45 L/MIN	Ratio	33/66
Seal Material	Nitrile	Standard Flow Rate Setting	3-9 GAL/MIN, 11.3-33.8 L/MIN
Cavity Size	C10-4	Connection Size	n/a
Division	Hydraulic Systems Division	Standard Flow Rate Setting	11.3-33.8
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Automatic
Maximum Operating Temperature	+250	Maximum Flow Rate	12
Connection Type	n/a	Division	Hydraulic Valve Systems Division
Operating Temperature	-30 to +250	Flow Rate Accuracy	10%
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Valve Material	All parts steel. All operating parts hardened steel	Maximum Inlet Pressure Rating	3500
Configuration	n/a	Maximum Operating Pressure	3500
Ratio	33/66	Function	Flow Divider/Combiner
Body Material	n/a	Weight	0.3
Flow Rate	12	Minimum Operating Temperature	-30
Seal Material	Nitrile	Installation Torque	16
Actuation Type	Interlocking Spools
